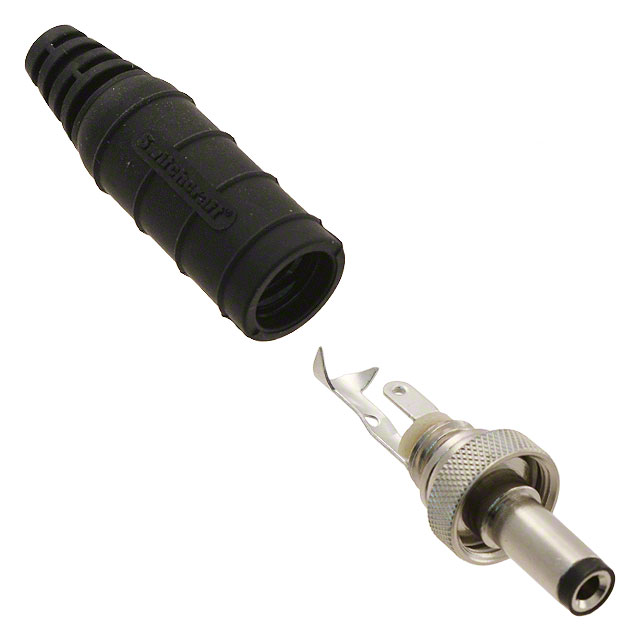

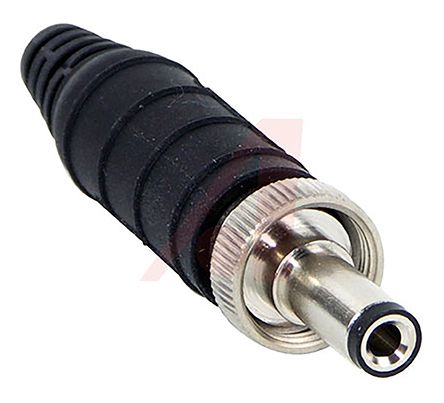

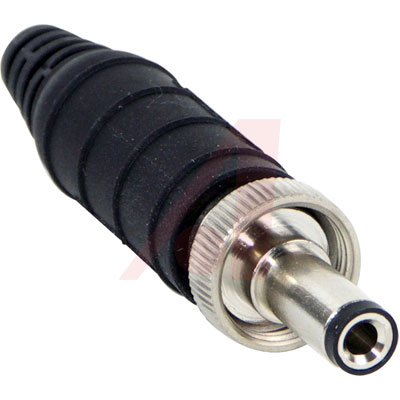

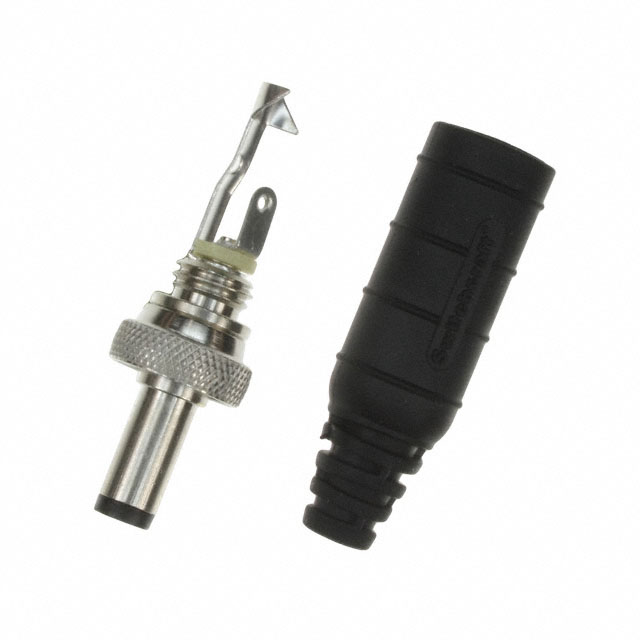

761KS17

SWITCHCRAFT  761KS17  电源插头, 2.5MM 公, 4.4-5.1MM外径

Switchcraft 直流电源插头，2.1mm 和 2.5mm

Switchcraft 2 导体直流电源插头，带有一个空心中心引脚和模制塑料盖，适合与 2.1mm 和 2.5mm 插孔一起使用。 套管端子也可用作电缆夹。 提供红色或黑色盖型号，并提供与合适的插孔插座配接时锁定的型号。

### 特点和优势

• 额定电流：5A（12V 直流时）

• 10,000 次接合以上

### 插头和插座

微型插头适合从固定低压直流电源向便携式收音机、计算器及测试仪和测量仪供电。 还可提供 2.1mm 插头用底盘安装插座及端接到 2.1mm 和 2.5mm 插头和插座的适配器导线。 触点为镀镍/镀银黄铜。主体由 ABS 塑料模制而成。

欧时:
Black Tip IP68 DC Power Connector

得捷:
CONN PWR PLUG 2.5X5.5MM SOLDER

贸泽:
直流电源连接器 Pwr Plug Sealed IP68 2.5mm lckg Black Tip

e络盟:
直流电源连接器, 插头, 5 A, 2.5 mm, 12 mm, 电缆安装, 焊接

艾睿:
Do you need to connect a power supply to a circuit? Then this 761KS17 power connector from Switchcraft is perfect for you! This PL connector&s;s 2 contacts that are made out of copper alloy and plated with nickel. This connector has a single port. It has a plug type gender. It has a straight body orientation. 761KS17 is housed in thermoplastic. This product is 57.1 mm long with a diameter of 12.7 mm. It has 2 terminals.

Allied Electronics:
Sealed Power Plug; center pin 0.10; Black Tip; 0.175-0.200 Cable OD Range; IP68/

安富利:
Conn Power PL 1 POS Solder/Crimp ST Cable Mount 1 Terminal 1 Port

Verical:
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port

Newark:
# SWITCHCRAFT  761KS17  DC Power Connector, Plug, 5 A, 2.5 mm, 12 mm, Cable Mount, 2.5 mm

MASTER:
DC Power Connector - Plug - 5 A - 2.5 mm - 12 mm - Cable Mount - Solder.

Online Components:
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port

Electro Sonic:
DC Power Connector - Plug - 5 A - 2.5 mm - 12 mm - Cable Mount - Solder.
