79107-7019

MOLEX  79107-7019  板至板连接, Milli-Grid 79107系列, 40 触点, 插座, 2 mm, 通孔安装, 2 排

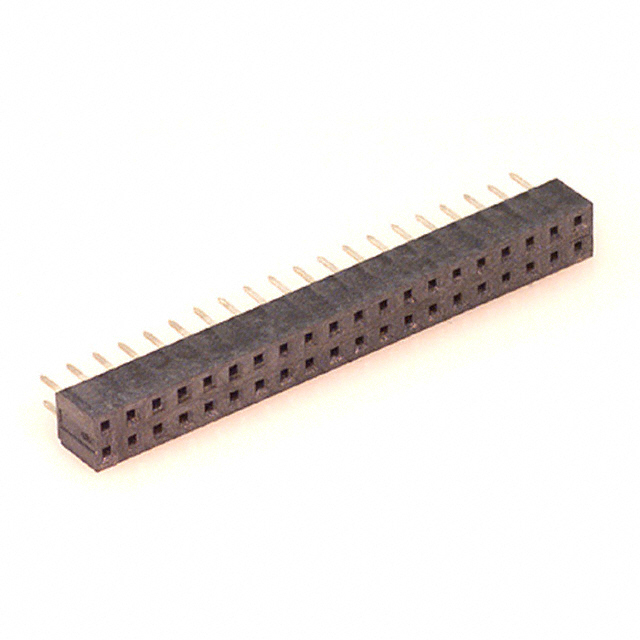

The is a 40-circuit 2-row 2mm pitch Milli-Grid™ Vertical Receptacle, with 0.38µm gold selective plating, 3mm tail, gold-plated phosphor bronze contacts and through hole termination. This 791047 series receptacle is made of high temperature thermoplastic, mates with 87758 vertical, through hole, stackable PCB header, 87759 vertical, surface mount, stackable PCB header, 87760 right angle, through hole, stackable PCB header, 87831 vertical, through hole PCB header, 87832 vertical, surface mount PCB, suitable for board-to-board and signal applications. The high-density Milli-Grid™ connector system based on a 2 by 2mm grid pattern that offers complete design flexibility for wire-to-board, board-to-board and cable-to-board applications.

.

Early entry system crimp terminals - Provides longer pin wipe for a more reliable contact

.

Center polarization key - Prevents mismating

.

Locking ramps - Provides strong retention force to header

.

Black colour

.

1A Current rating per contact

.

125V Voltage rating

.

-55 to 105°C Temperature range
