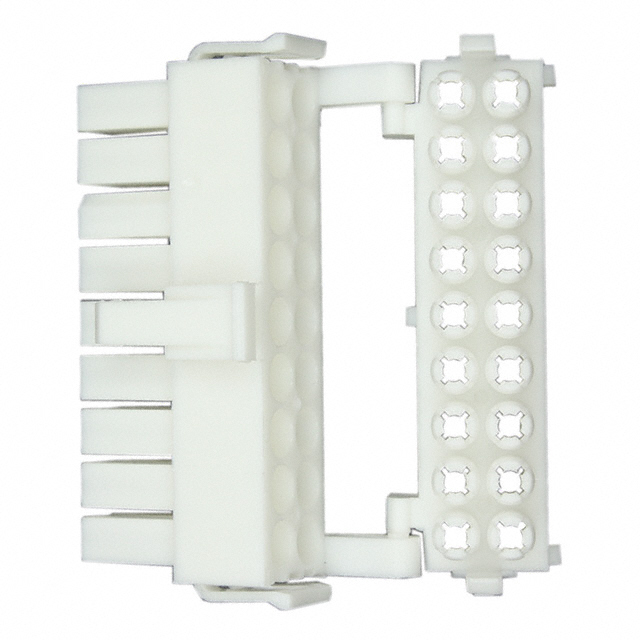

794208-1

Conn Housing PL 18POS 4.14mm ST Cable Mount Bag

18P MINI UMNL2 PLUG HSG UL94V0

Product Highlights

Housing

Mini-Universal MATE-N-LOK 2

Number of Circuits = 18

4.14 x 4.14 mm Centerline, Matrix

Double-Row Contact Layout

得捷:
CONN PLUG HSG 18POS 4.14MM

贸泽:
Pin & Socket Connectors CONN PLUG 18 POS

艾睿:
Thanks to TE Connectivity&s;s 794208-1 discrete wire housing, you can now easily connect discrete wires to your printed circuit board. This PL connector has 18 PL contacts. It has a straight body orientation. It has a plug type gender. This is a 2-row connector. Its pitch is 4.14 mm. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 9.5 A/contact. 794208-1 is housed in white nylon. This product is 43.54 mm long, 17.25 mm tall and 23.75 mm deep.

安富利:
Conn Housing PL 18 POS 4.14mm ST Individual

Chip1Stop:
Conn Housing PL 18 POS 4.14mm ST Cable Mount Individual

Verical:
Conn Housing PL 18 POS 4.14mm ST Cable Mount White Bag/Box

Newark:
# AMP - TE CONNECTIVITY  794208-1  18P MINI UMNL2 PLUG HSG UL94V0 New

MASTER:
PLUG, DUAL ROW, 18 CIRCUIT, MINI UNIVERSAL MATE-N-LOKTM 2

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
18P MINI UMNL2 PLUG HSG UL94V0

Electro Sonic:
18P MINI UMNL2 PLUG HSG UL94V0
