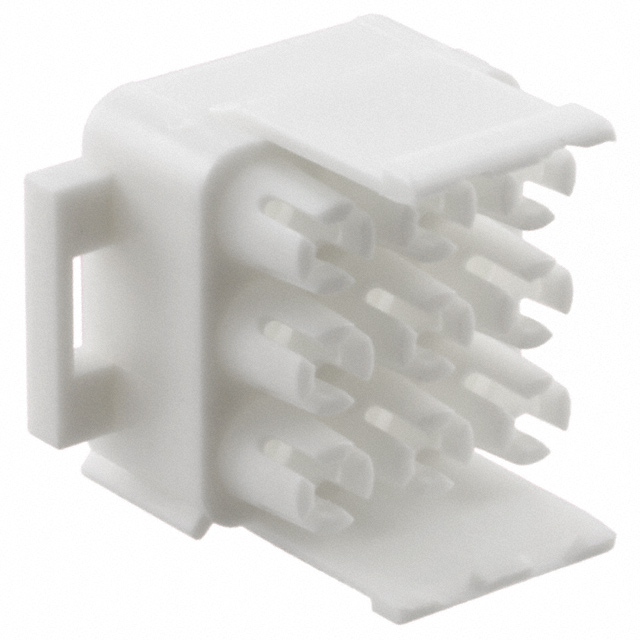

770054-1

Conn Housing RCP 9POS 6.35mm ST Cable Mount Package

* High reliability * For use where repair or replacement would be difficult * Cap Rear housing * Available in 9 circuit sizes for freehanging or panel mount wire-to-wire connection * Mate with standard Universal MATE-N-LOK Housings and PC Board Headers * Uses standard Universal MATE-N-LOK panel cutouts and strain reliefs * Polarized housings available in UL94V-0 flammability rated material * Enclosed contacts for shock protection * Contacts available in strip and loose form * Lanceless contacts for tangle-free handling * Connector design provides for complete contact insertion * Three-point stabilization precisely controls contact alignment, minimizing stubbing * Tin or duplex gold plated contacts * Contacts are on .250 [6.35] centerline spacing * Not for interrupting current * Recognized under the Component Program of Underwriters Laboratories Inc. * Certified by Canadian Standards Association * Passed test by VDE under their Registration Number 3980/Continuous Surveillance
