747190-1

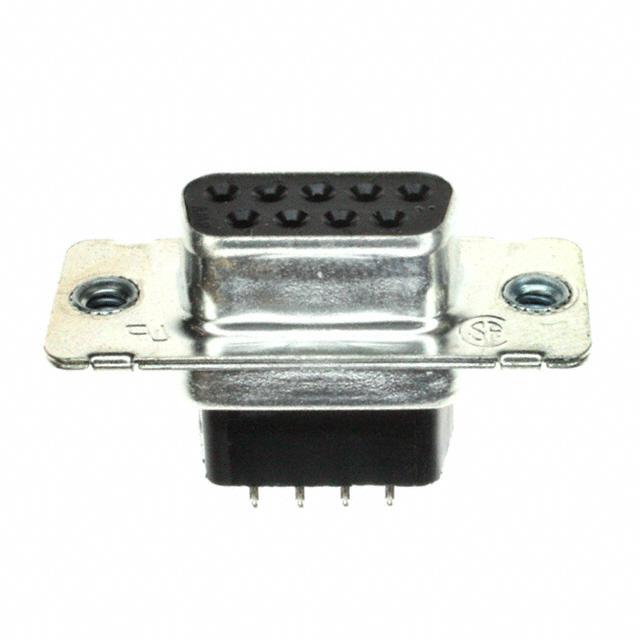

Conn D-Subminiature SKT 9POS 2.74mm Solder ST Thru-Hole 9 Terminal 1Port

9 位 D-Sub 插座，母型插口

得捷:
CONN D-SUB RCPT 9POS VERT SLDR

艾睿:

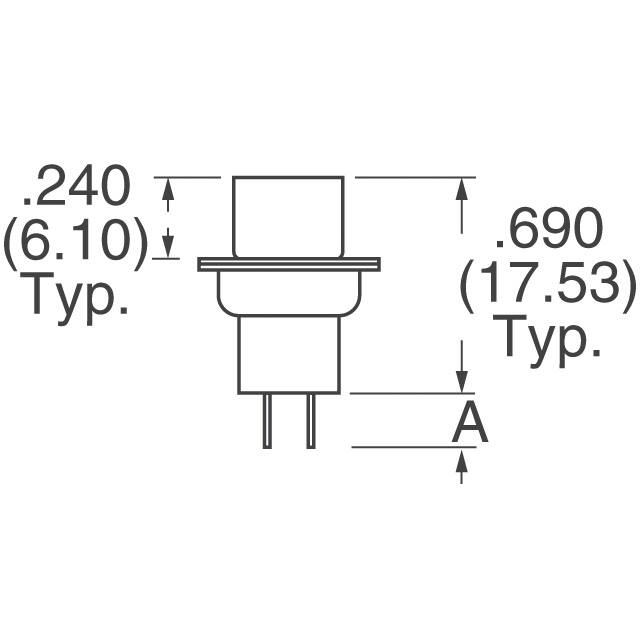

Make the most secure connections between serial ports using the 747190-1 DVI connector from TE Connectivity. This socket type connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. This 2-row connector has a single port. Its pitch is 2.74 mm. 747190-1 is housed in nylon|polyester. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DVI connector has an operating temperature of -55 to 105 °C. Its 9 terminals use the solder termination method. This product is 30.81 mm long, 17.55 mm tall and 12.55 mm deep.

安富利:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port

Verical:
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Tube

Newark:
# AMP - TE CONNECTIVITY  747190-1  09 RCPT SP/MS CNUT

MASTER:
RECEPTACLE ASSEMBLY, SIZE 1, 9 POS., VERTICAL, .025 SQ. POSTS, W/CLINCH NUTS, AMPLIMITE

Powell:
Standard Board Mount Connectors

Online Components:
09 RCPT SP/MS CNUT

Electro Sonic:
09 RCPT SP/MS CNUT
