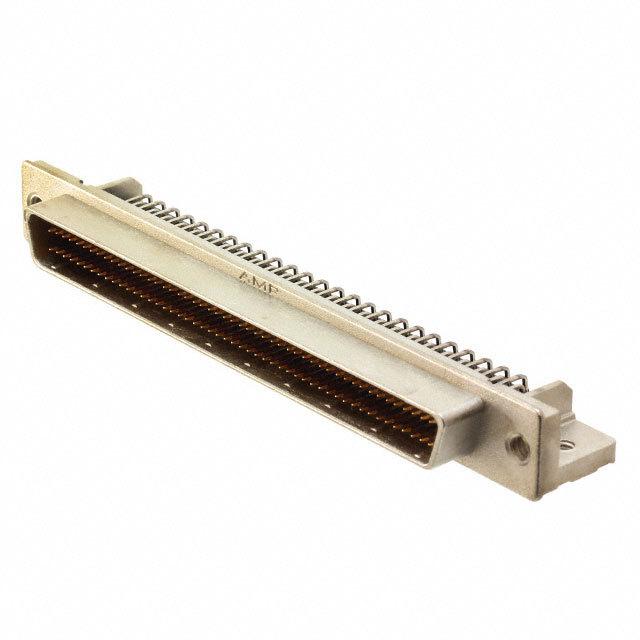

749084-9

Conn SCSI PL 100POS 1.27mm Solder RA Thru-Hole 100 Terminal 1Port

100 50SR R/A PLUG ASSY

Product Highlights

Connector

Plug

Number of Positions = 100

Not Shielded

With Mating Connector Lock

得捷:
CONN D-TYPE PLUG 100POS R/A SLDR

贸泽:
D-Sub High Density Connectors 100P D-SUB PLUG

艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this 749084-9 SCSI connector from 749084-9 in order to interface with each other. This PL connector&s;s 100 contacts that are made out of phosphor bronze and plated with gold over nickel|gold over palladium nickel over nickel. Its pitch is 1.27 mm. It has a plug type gender. It has a right angle body orientation. This connector has a single port. 749084-9 is housed in liquid crystal polymer. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 100 terminals use the solder termination method. This product is 84.2 mm long, 10.31 mm tall and 17.27 mm deep.

安富利:
Conn SCSI PL 100 POS 1.27mm Solder RA Thru-Hole 100 Terminal 1 Port

Verical:
Conn SCSI PL 100 POS 1.27mm Solder RA Thru-Hole 100 Terminal 1 Port

Newark:
# AMP - TE CONNECTIVITY  749084-9  100 50SR R/A PLUG ASSY New

MASTER:
PLUG ASSEMBLY, SHIELDED, RIGHT ANGLE, AMPLIMITE .050 Series

Powell:
.050 Series Board Mount Connectors

Online Components:
100 50SR R/A PLUG ASSY

Electro Sonic:
100 50SR R/A PLUG ASSY
