747461-1概述

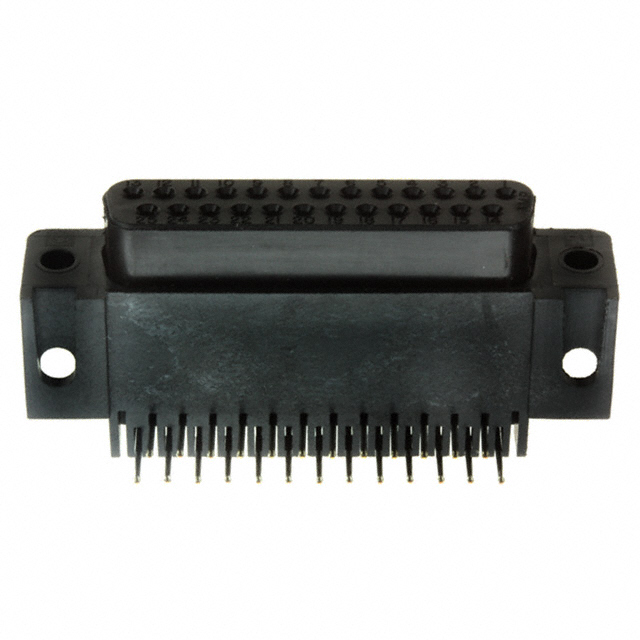

Conn D-Subminiature SKT 25POS 2.75mm Solder RA Thru-Hole 25 Terminal 1Port

25 APFL RCPT RA 590

Product Highlights

Number of Positions = 25

Receptacle

PCB Mount Angle = Right Angle

Product Series = HD 20

Without Mating Connector Lock


得捷:
CONN D-SUB RCPT 25POS R/A SLDR


艾睿:
Using the 747461-1 DVI connector from TE Connectivity is fast and easy for communicating between serial connections in your circuit. Its pitch is 2.75 mm. This socket type connector&s;s 25 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. This 2-row connector has a single port. It has a right angle body orientation. 747461-1 is housed in nylon|polyester. This product is 53.03 mm long, 11.48 mm tall and 24.68 mm deep. This DVI connector has an operating temperature of -55 to 105 °C. Its 25 terminals use the solder termination method.


安富利:
Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port


Verical:
Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port Package


Newark:
# AMP - TE CONNECTIVITY  747461-1  25 APFL RCPT RA 590 New


MASTER:
RECEPTACLE ASSY, SIZE 3, 25 POSN, RIGHT ANGLE, .590 SERIES, .026 DIA POSTS, AMPLIMITE HD-20


Powell:
AMPLIMITE All Plastic


Online Components:
25 APFL RCPT RA 590


Electro Sonic:
25 APFL RCPT RA 590


747461-1中文资料参数规格
技术参数

触点数 25

极性 Female

触点电镀 Gold Flash, Tin Lead

绝缘电阻 5000 MΩ

排数 2

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 25

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压Max 250 VAC

工作电压Max 250 VAC

接触电阻Max 15 mΩ

封装参数

安装方式 Through Hole

引脚间距 2.77 mm

外形尺寸

长度 53.0 mm

宽度 24.7 mm

高度 11.48 mm

引脚间距 2.77 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 105℃

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Tray

制造应用 Signal

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040
