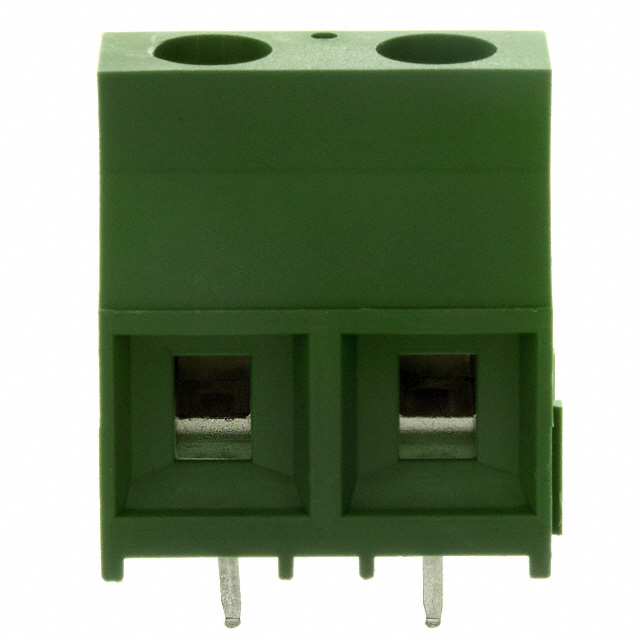

796739-2

2 位置 9.53 mm 间距 焊接 RA 通孔 32 A 连接器 接线端子

2 接线板 - 线至板 水平，带板 0.375"（9.53mm） 通孔

得捷:
TERM BLK 2P SIDE ENT 9.53MM PCB

艾睿:
When you implement this eurostyle block 796739-2 PCB terminal block from TE Connectivity, you will get the best connections results for your circuit! This F connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin. It has a female type gender. This is a 1-row connector. Its pitch is 9.53 mm. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. 796739-2 is housed in polyamide 6/6. This device has a maximum current rating of 32 A/contact. It uses the solder termination method. Its wire is 10-24 AWG. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 19.64 mm long, 21.5 mm tall and 12.5 mm deep.

Allied Electronics:
Buchanan; Conn; Term Blk; PCB; 2; 9.53mm; 24-10 AWG; Green; 30 A; 600 V; Vert. Mount

安富利:
Conn Terminal Block F 2 POS 9.53mm Solder RA Thru-Hole 32A/Contact

Chip1Stop:
Conn Eurostyle Block F 2 POS 9.53mm Solder RA Thru-Hole 32A/Contact

Verical:
Conn Eurostyle Block F 2 POS 9.53mm Solder RA Thru-Hole 30A

MASTER:
TERMINAL BLOCK, PCB MOUNT SIDE WIRE ENTRY, HIGH CURRENT

Powell:
Terminal Block Connectors

Online Components:
2 POS PCB MT 9.52MM HI CRT TBK

Electro Sonic:
2 POS PCB MT 9.52MM HI CRT TBK
