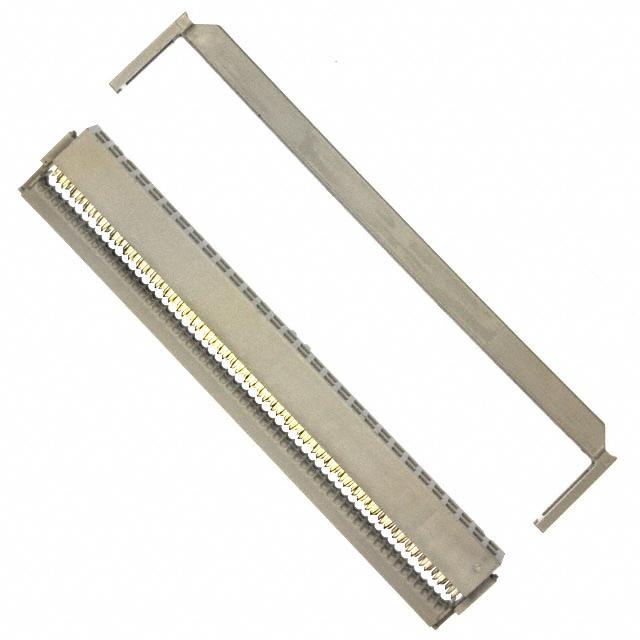

AMPHENOL FCI 71600-060LF 线至板连接器, 带应力消除, Quickie系列, 60 触点, 插座, 2.54 mm, IDC / IDT, 2 排
**Quickie Series**
Professional range of IDC 2.54mm rectangular connectors from the Quickie series.
贸泽:
集管和线壳 .100" RCPT 2X30P
Allied Electronics:
connector, idc receptaclefemale, central&dual; polarization, 60 contact, gold, grey
安富利:
Conn IDC Connector RCP 60 POS 2.54mm IDT RA Cable Mount Tube
Chip1Stop:
Conn IDC Connector RCP 60 POS 2.54mm IDT RA Cable Mount Tube
Verical:
Conn IDC Connector RCP 60 POS 2.54mm IDT RA Cable Mount Tube
触点数 60
极性 Female
线规 28AWG ~ 30AWG
触点电镀 Gold
额定电流 1 A
绝缘电阻 50.0 GΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 60
拔插次数 250
触点额定电流 1.00 A
额定电流Max 1A/触头
额定电压Max 1000 VAC
额定电压 1000 V
接触电阻Max 15 mΩ
安装方式 PC Board
引脚间距 2.54 mm
长度 80.67 mm
宽度 7.1 mm
高度 16.8 mm
引脚间距 2.54 mm
外壳颜色 Gray
颜色 Gray
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 Computers & Computer Peripherals, Test & Measurement, Industrial, Automotive, Medical, Multimedia, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
