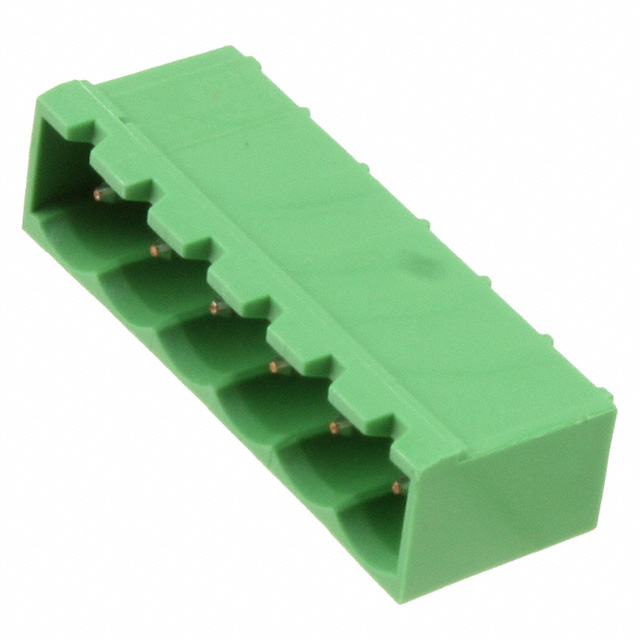

796644-6

TE CONNECTIVITY / BUCHANAN  796644-6  多极连接器

* Connector

* Type of Connector = Header

* Shrouded

* Housing Color = Green

* Not Side Stackable

得捷:
TERM BLOCK HDR 6POS 90DEG 5MM

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s shrouded 796644-6 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 6 contacts that are made out of phosphor bronze and plated with tin. It has a header type gender. Its pitch is 5 mm. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a right angle body orientation. This device has a maximum current rating of 15 A/contact. This product is 32 mm long, 8.35 mm tall and 12 mm deep. 796644-6 is housed in green polyamide 6/6. It uses the solder termination method.

Allied Electronics:
Buchanan; Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 6Pole; 5.08mmPitch

安富利:
Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 6 POS 5mm Solder RA Side Entry Thru-Hole Box

MASTER:
TERMI-BLOK HEADER ASSEMBLY, 90 DEGREE, CLOSED ENDS, 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
6POS 5.0MM CE R/A HDR,TRM BLK

Electro Sonic:
6POS 5.0MM CE R/A HDR,TRM BLK
