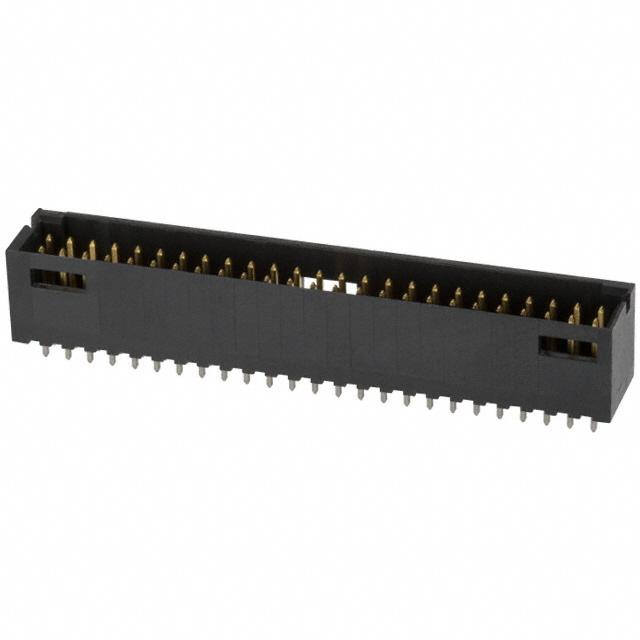

7-102618-3

Conn Shrouded Header HDR 50POS 2.54mm Solder ST Thru-Hole

50 MODII HDR DRST SHRD .100CL

Product Highlights

Connector

Housing Gender = Header - Pin

Contact Gender = Pin

Header Type = Shrouded

50 Positions

得捷:
CONN HEADER VERT 50POS 2.54MM

艾睿:
Easily mount this shrouded 7-102618-3 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This connector has an operating temperature of -55 to 105 °C. This product is 64.31 mm long, 11.17 mm tall and 10.16 mm deep. 7-102618-3 is housed in black thermoplastic. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 50 POS 2.54mm Solder ST Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  7-102618-3  50 MODII HDR DRST SHRD .100CL

MASTER:
ASSEMBLY, HEADER, MOD II, .025 SQ POST, DBL ROW, .100 X .100 C/L WITH DETENTS

Powell:
.100 inch AMPMODU Headers

Online Components:
50 MODII HDR DRST SHRD .100CL

Electro Sonic:
50 MODII HDR DRST SHRD .100CL
