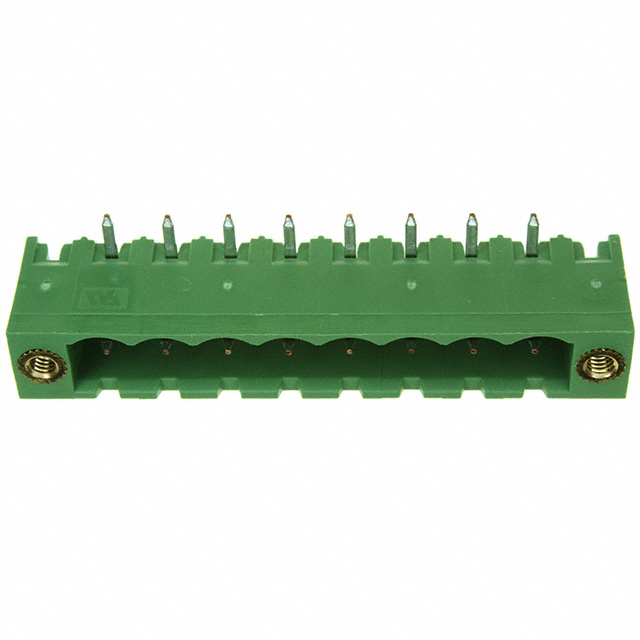

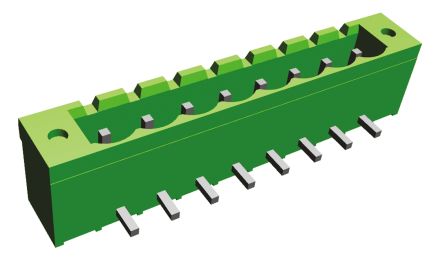

796866-8

TE Connectivity TERMI-BLOK 5.08mm 印刷电路板端子块管座，带锁定螺钉法兰TERMI-BLOK 3.81mm 印刷电路板端子块管座连接器，带锁定螺钉法兰。 这些 TERMI-BLOK 3.81mm 印刷电路板端子块管座可提供垂直或直角印刷电路板安装，并且由绿色聚酰胺 6.6 GF 制成。### TE Connectivity TERMI-BLOK 5.08mm 两件式端子块技术参数 --- 额定电流 | 12A 电压额定值 | 250V 交流 导线接受范围 | 0.3 至 2.5mm（实心） 外壳 | 聚酰胺 6//6，UL94 V-0 级 触点材料 | 螺旋夹 - 镀镍黄铜 管座 - 镀锡黄铜

TERMI-BLOK 5.08mm 印刷电路板端子块管座，带锁定螺钉法兰

TERMI-BLOK 3.81mm 印刷电路板端子块管座，带锁定螺钉法兰。 这些 TERMI-BLOK 3.81mm 印刷电路板端子块管座可提供垂直或直角印刷电路板安装，并且由绿色聚酰胺 6.6 GF 制成。

### TE Connectivity TERMI-BLOK 5.08mm 两件式端子块

欧时:
8 POS TERMINAL-BLOCK HEADER

得捷:
TERM BLOCK HDR 8POS 90DEG 5.08MM

艾睿:
Make strong and binding connections on your circuit boards by adopting this shrouded 796866-8 connector from TE Connectivity. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. Its pitch is 5.08 mm. It has a right angle body orientation. It has a maximum voltage rating of 300 VAC. It has a header type gender. This device has a maximum current rating of 15 A/contact. 796866-8 is housed in green polyamide 6/6. It uses the solder termination method. This product is 50.72 mm long, 8.35 mm tall and 12 mm deep.

安富利:
Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 8 POS 5.08mm Solder RA Thru-Hole Carton

Newark:
# AMP - TE CONNECTIVITY  796866-8  8 POS TERMI-BLOK HDR RT ANGLE New

MASTER:
TERMINAL BLOCK HEADER ASSEMBLY, 90 DEGREE, WITH FLANGE, 5.08mm PITCH

Powell:
Terminal Block Connectors

Online Components:
8 POS TERMI-BLOK HDR RT ANGLE

Electro Sonic:
8 POS TERMI-BLOK HDR RT ANGLE
