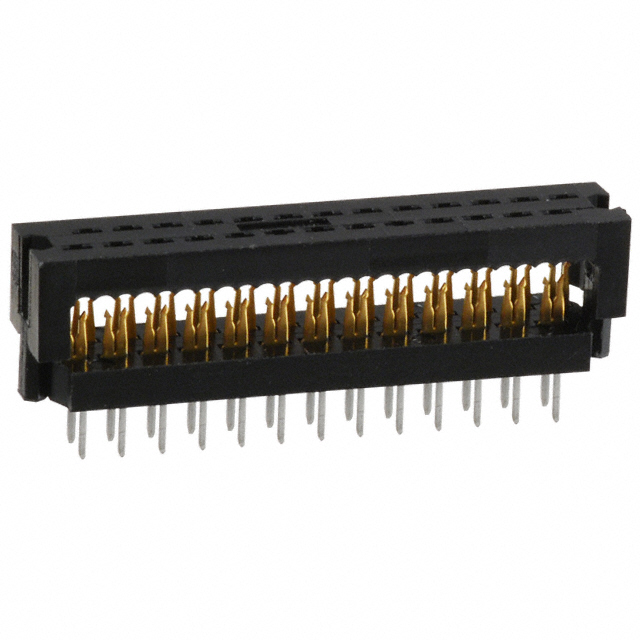

746610-9

集管和线壳 40P DIP PLUG IDC

40 位置 带状电缆，DIP 针座 黑色 IDC 26-28 AWG，绞合；26-30 AWG，实心 通孔

得捷:
CONN DIP HDR IDC 40POS VERT

贸泽:
集管和线壳 40P DIP PLUG IDC

艾睿:
TE Connectivity&s;s idc connector 746610-9 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This PL connector&s;s 40 contacts that are made out of phosphor bronze and plated with bright tin-lead over nickel. It has a right angle body orientation. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a plug type gender. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 55.37 mm long, 6.43 mm tall and 7.06 mm deep. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. 746610-9 is housed in black thermoplastic.

安富利:
Conn IDC Connector M 40 POS 2.54mm IDT RA Cable Mount

Verical:
Conn IDC Connector PL 40 POS 2.54mm Solder RA Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  746610-9  040 DIP PLUG 100CL TIN New

MASTER:
KIT, AMP-LATCH DIP PLUG, PREASSEMBLED, .100 X .100 CENTERS,

Powell:
Ribbon Cable Connectors AMP-LATCH

Online Components:
040 DIP PLUG 100CL TIN

Electro Sonic:
040 DIP PLUG 100CL TIN
