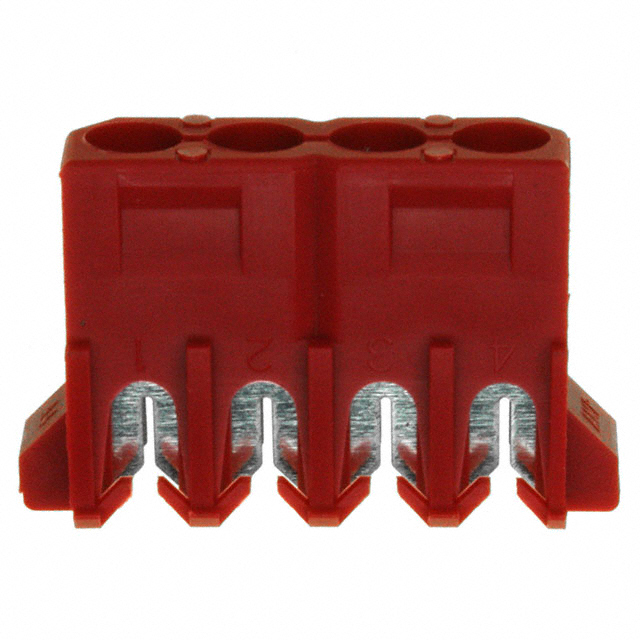

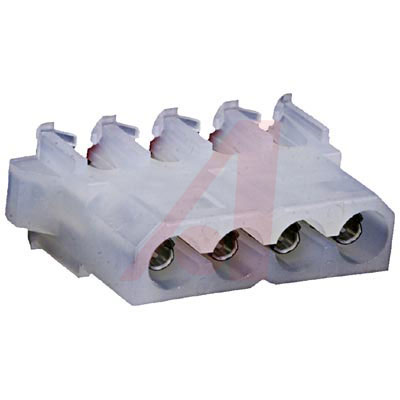

770156-2

Connector, Soft Shell; 250VAC; 13A; 4; 0.084in.; 0.095in.; Nylon; 0.2in.

Soft Shell Connector, IDC Connector Product Type, 250 VAC Voltage Rating, 13 A Current Rating

Four-circuit, in-line. UL 94 V-2 nylon.

.

* Contact Plating:** Pre-tin over phosphor bronze.

In-line contact layout. Pre-tin contact termination area plating.

得捷:
CONN PLUG 4POS IDC 22AWG TIN

艾睿:
As an added safety precaution, the idc connector 770156-2 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This PL connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 5.08 mm. It has a right angle body orientation. It has a plug type gender. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 13 A/contact. It uses the idt termination method. This connector has an operating temperature of -55 to 85 °C. 770156-2 is housed in red nylon. This product is 25.25 mm long, 16.33 mm tall and 9.91 mm deep.

Allied Electronics:
Connector, Soft Shell; 250 VAC; 13 A; 4; 0.084 in.; 0.095 in.; Nylon; 0.200 in.

安富利:
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount

Verical:
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount

MASTER:
PLUG ASSEMBLY, INSULATION DISPLACEMENT, COMMERCIAL MATE-N-LOKTM

Powell:
.200" Centerline, 250 V, 13 A max.

Online Components:
4P CMNL IDC PLUG 22AWG RED V2

Electro Sonic:
4P CMNL IDC PLUG 22AWG RED V2
