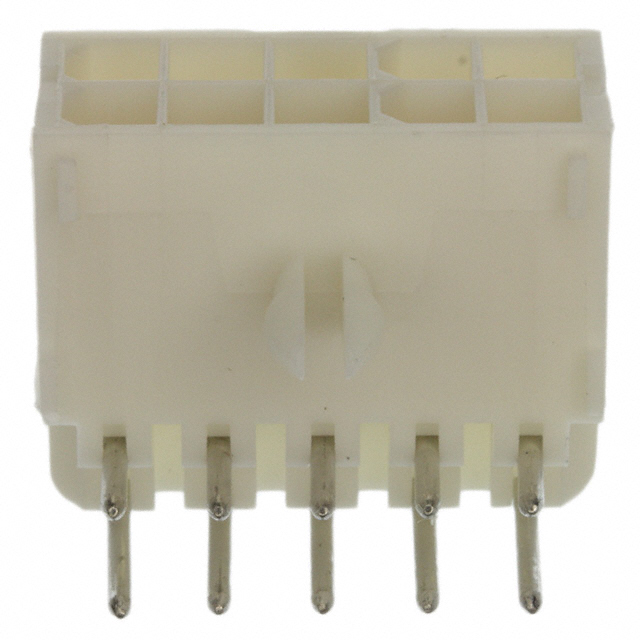

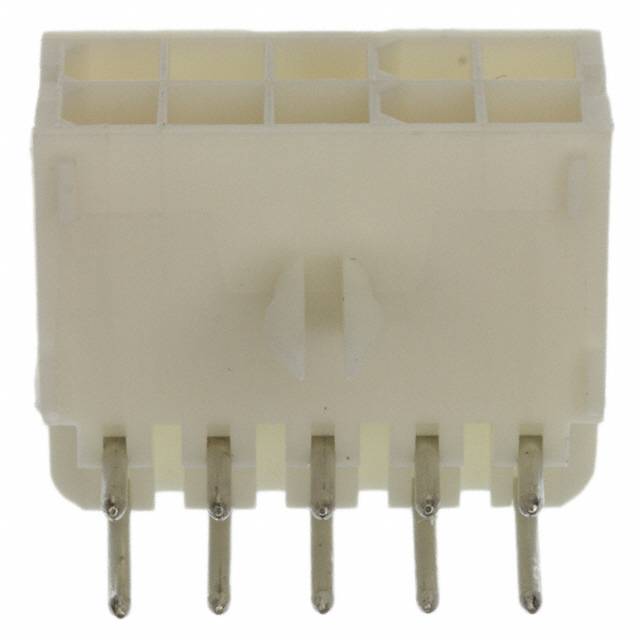

770971-2

管脚和插座连接器 10P HEADER

10P MINI UMNL R/A HDR ASSY AU

Product Highlights

Header

Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2

Number of Circuits = 10

4.14 x 4.14 mm Centerline, Matrix

Double-Row Contact Layout

得捷:
CONN HEADER R/A 10POS 4.14MM

贸泽:
管脚和插座连接器 10P HEADER

艾睿:
Easily connect a power supply to a circuit with this 770971-2 power connector from TE Connectivity. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. Its pitch is 4.14 mm. It has a maximum voltage rating of 600 VAC. This connector has a single port. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 9.5 A/contact. 770971-2 is housed in nylon. This product is 11.86 mm tall. Its 10 terminals use the solder termination method. This power connector has a minimum operating temperature of -20 °C and a maximum of 105 °C.

安富利:
Conn Power PIN 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port

Verical:
Conn Power HDR 10 POS 4.14mm Solder RA Thru-Hole 10 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  770971-2  10P MINI UMNL R/A HDR ASSY AU New

MASTER:
10P MINI UMNL R/A HDR ASSY AU

Powell:
.163" Centerline, 600 V, 9.5 A max.

Online Components:
10P MINI UMNL R/A HDR ASSY AU

Electro Sonic:
10P MINI UMNL R/A HDR ASSY AU
