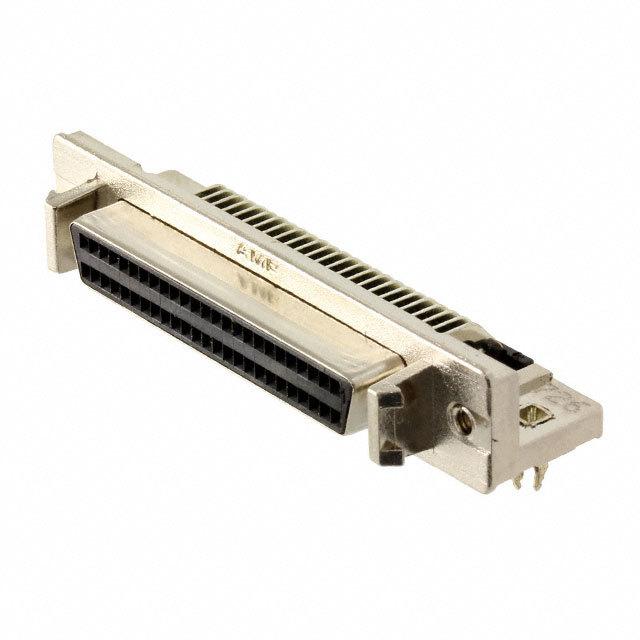

787082-5

D-Sub标准连接器 50P R/A RECPT ASSY W/BOARDLOCKS

50 50SR R/A RCPT ASSY,REDESIGN

Product Highlights

Connector

Receptacle

Number of Positions = 50

Shielded

With Mating Connector Lock

得捷:
CONN D-TYPE RCPT 50POS R/A SLDR

贸泽:
D-Sub标准连接器 50P R/A RECPT ASSY W/BOARDLOCKS

艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this 787082-5 SCSI connector from 787082-5 in order to interface with each other. This RCP connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel|gold over palladium nickel over nickel. It has a right angle body orientation. It has a maximum voltage rating of 30 VAC. Its pitch is 2.54 mm. It has a receptacle type gender. This connector has a single port. 787082-5 is housed in thermoplastic. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 50 terminals use the solder termination method. This product is 52.45 mm long, 10.31 mm tall and 16.87 mm deep. This SCSI connector has an operating temperature range of -55 °C to 105 °C.

安富利:
Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube

Chip1Stop:
Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube

Verical:
Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube

MASTER:
RECEPTACLE ASSEMBLY, SHIELDED, RIGHT ANGLE, .050 SERIES, AMPLIMITE

Powell:
.050 Series Board Mount Connectors

Online Components:
50 50SR R/A RCPT ASSY,REDESIGN

Electro Sonic:
50 50SR R/A RCPT ASSY,REDESIGN
