787653-4

TE Connectivity CHAMP 1.27mm 中心线连接器一系列 TE Connectivity CHAMP 050 系列 1.27mm 中心线连接器，可用于各种应用，如板对板和 SCSI。### TE Connectivity CHAMP 连接器### Champ 连接器

CHAMP 1.27mm 中心线

一系列 TE Connectivity CHAMP 050 系列 1.27mm 中心线连接器，可用于各种应用，如板对板和 SCSI。

### Champ 连接器

得捷:
CONN BTB SCA-2 RCPT 20P R/A SLDR

欧时:
### TE Connectivity CHAMP 1.27mm 中心线连接器一系列 TE Connectivity CHAMP 050 系列 1.27mm 中心线连接器，可用于各种应用，如板对板和 SCSI。### TE Connectivity CHAMP 连接器### Champ 连接器

艾睿:

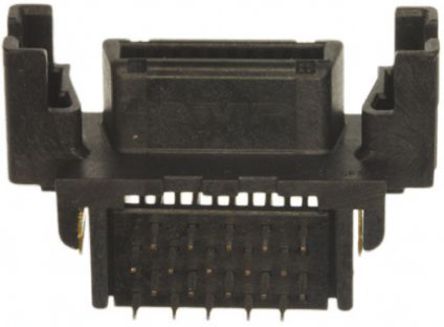

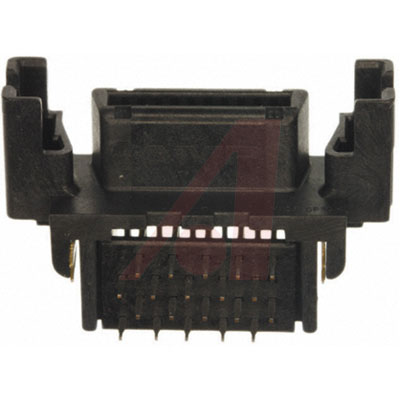

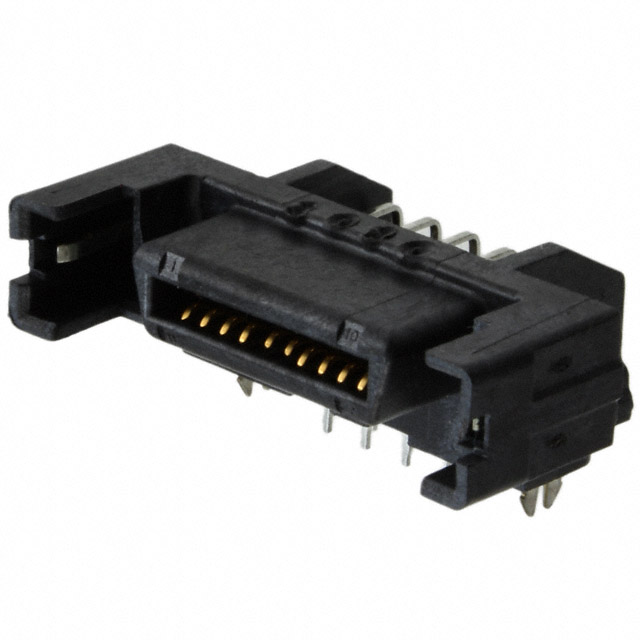

Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this 787653-4 SCSI connector from 787653-4 in order to interface with each other. This RCP connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. This connector has a single port. It has a right angle body orientation. It has a maximum voltage rating of 100 VAC. Its pitch is 2.54 mm. 787653-4 is housed in liquid crystal polymer. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. This SCSI connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its 20 terminals use the solder termination method. This product is 29.88 mm long, 9.85 mm tall and 18.97 mm deep.

Allied Electronics:
Female 20 Way Right Angle Through Hole SCSI Connector 2.54mm Pitch, Solder

安富利:
Conn SCSI RCP 20 POS 2.54mm Solder RA Thru-Hole 20 Terminal 1 Port

Chip1Stop:
Conn SCSI RCP 20 POS 2.54mm Solder RA Thru-Hole 20 Terminal 1 Port Tray

Verical:
Conn High Density RCP 20 POS 2.54mm Solder RA Thru-Hole 20 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  787653-4  20 BLDMATE RCPT ASSY LEAD FREE New

MASTER:
RECEPTACLE ASSEMBLY, RIGHT ANGLE, 20 POSITION, BOARD TO BOARD, .050, SERIES I, CHAMP BLINDMATE

Online Components:
20 BLDMATE RCPT ASSY LEAD FREE

Electro Sonic:
20 BLDMATE RCPT ASSY LEAD FREE
