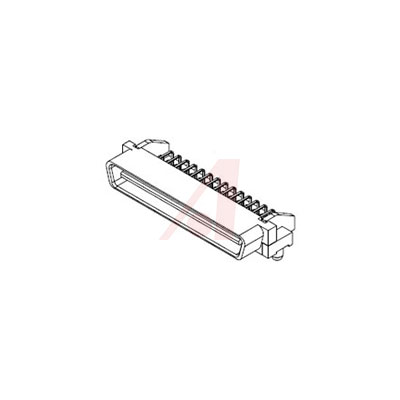

71661-2540

71661-2540图片1
71661-2540图片2
71661-2540图片3
71661-2540图片4
71661-2540图片5
71661-2540概述

1.27毫米( .050 “ )间距EBBI ™ 50D插头,直角,盲插, 40电路, 2.79毫米( 0.110 ” ) PCB焊脚长度 1.27mm .050" Pitch EBBI™ 50D Plug, Right Angle, Blind-Mate, 40 Circuits, 2.79mm.110" PC Tail Length

EBBI™ 50D

The EBBI 50D series meets the market demand for low-cost, unshielded, high density, leaf-style connectors. Several configurations are available including vertical, right angle and blind-mating to provide valuable design flexibility and expandability.

Leaf-style terminals are arranged in two rows on .050" spacing within a polarized "D"-shaped housing for rugged mechanical protection. Housings are made of high-temperature, UL 94V-0 thermoplastic. Terminals are plated with 30 micro-inches min. gold in the mating area for long term reliability and durability.

The IDT cable receptacle terminates to both .025" flat ribbon or laminated discrete-wire cable. A built-in polarizing key prevents mis-mating to the PCB card edge. The cable-gripping cover prevents cable pull-out and eliminates the need for an extra retention cover.

71661-2540中文资料参数规格
技术参数

触点数 40

额定电流 1 A

排数 2

灼热丝测试标准 Non-Compliant

无卤素状态 Low Halogen

方向 Right Angle

电路数 40

针脚数 40

拔插次数 2000

额定电流Max 1A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 30 V

额定电压 30 V

外形尺寸

长度 36.8 mm

宽度 17.45 mm

高度 7.5 mm

物理参数

触点材质 Brass

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买71661-2540
型号: 71661-2540
制造商: Molex 莫仕
描述:1.27毫米( .050 “ )间距EBBI ™ 50D插头,直角,盲插, 40电路, 2.79毫米( 0.110 ” ) PCB焊脚长度 1.27mm .050" Pitch EBBI™ 50D Plug, Right Angle, Blind-Mate, 40 Circuits, 2.79mm.110" PC Tail Length
