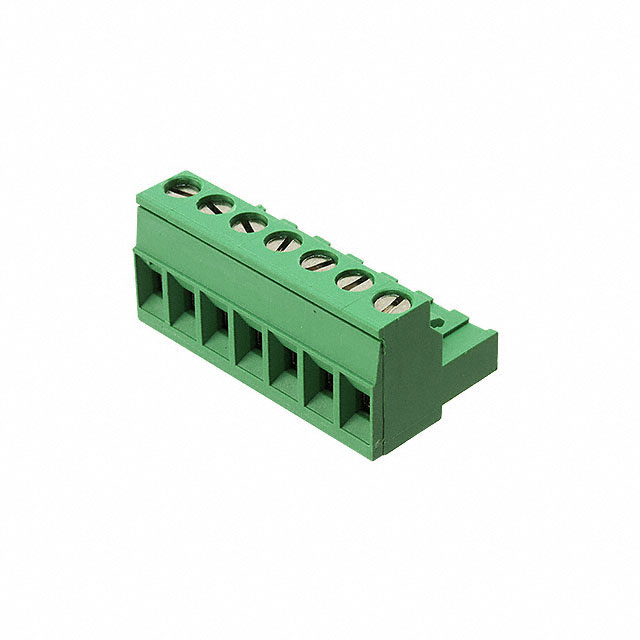

796640-7

可插拔接线端子 5.0MM RA PLUG 7P

7 针位端子块 插头，母插口 0.197"（5.00mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 7POS STR 5MM

贸泽:
可插拔接线端子 5.0MM RA PLUG 7P

艾睿:
This eurostyle block 796640-7 PCB terminal block manufactured from TE Connectivity will connect wires together. This F connector&s;s 7 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 300 VAC. Its pitch is 5 mm. It has a female type gender. It has a right angle body orientation. This is a 1-row connector. 796640-7 is housed in polyamide 6/6. This device has a maximum current rating of 15 A/contact. This product is 35 mm long, 15.5 mm tall and 18.4 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 12-30 AWG. It uses the screw termination method.

安富利:
Conn Terminal Block F 7 POS 5mm Screw RA Cable Mount 15A/Contact

Chip1Stop:
Conn Terminal Block F 7 POS 5mm Screw RA Cable Mount 15A/Contact

Verical:
Conn Eurostyle Block F 7 POS 5mm Screw RA Cable Mount 15A/Contact Box

Newark:
# AMP - TE CONNECTIVITY  796640-7  7 POS 5.0 MM R/A PLUG,TRM BLK New

MASTER:
TERMINAL BLOCK, PLUG, STACKING 5.00mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMINAL BLOCK, PLUG, STACKING 5.00mm PITCH

Electro Sonic:
7 POS 5.0 MM R/A PLUG,TRM BLK
