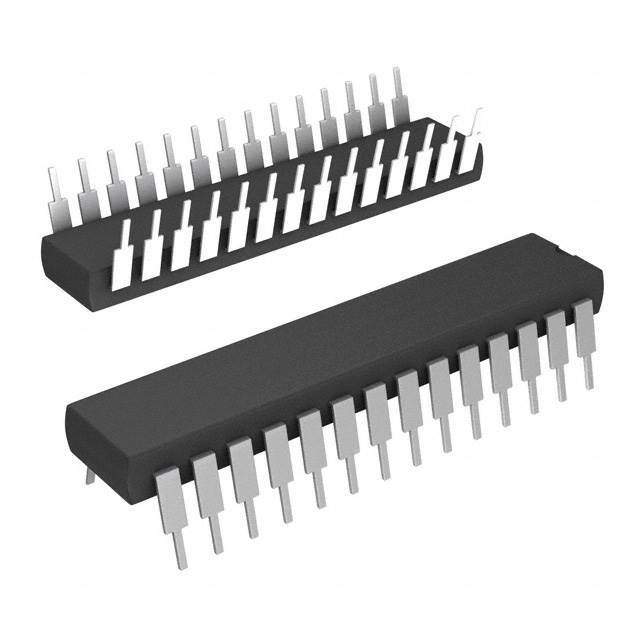

FIFO Mem Async Dual Depth/Width Uni-Dir 2K x 9 28Pin PDIP
* First-In/First-Out Dual-Port memory * 2,048 x 9 organization IDT7203 * High-speed: 12ns access time * Low power consumption * Active: 660mW max. * Power-down: 44mW max. * Asynchronous and simultaneous read and write * Fully expandable in both word depth and width * 720x family is pin and functionally compatible from 256 x 9 to 64k x 9 * Status Flags: Empty, Half-Full, Full * Retransmit capability * High-performance CMOS technology * Military product compliant to MIL-STD-883, Class B * Standard Military Drawing for #5962-88669 IDT7203, 5962-89567 IDT7203 are listed on this function * Industrial temperature range –40°C to +85°C is available plastic packages only * Green parts available
