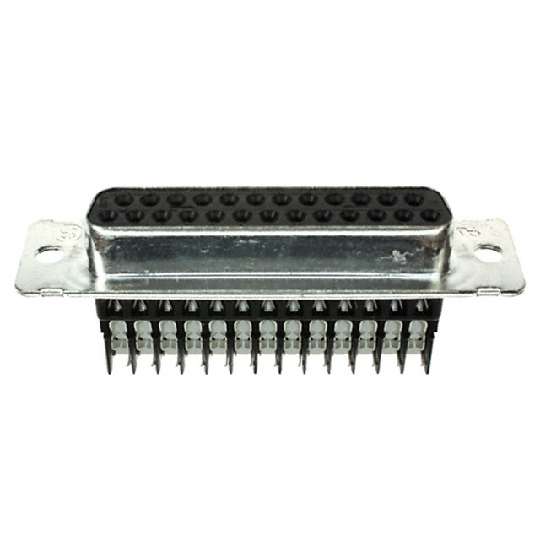

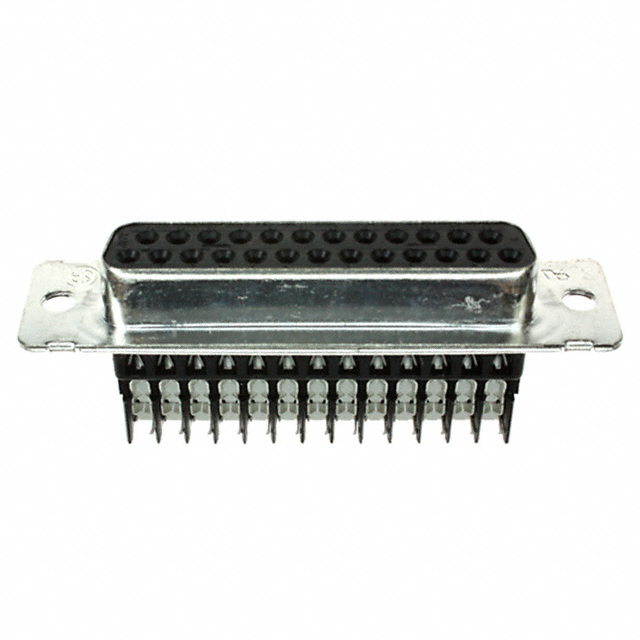

Conn D-Subminiature SKT 25POS 2.76mm Crimp ST Cable Mount 25 Terminal 1Port Automotive
Conn D-Subminiature SKT 25 POS 2.76mm Crimp ST Cable Mount 25 Terminal 1 Port Automotive
Product Highlights
Connector
Product Series = HDE-20 IDC
Number of Positions = 25
Receptacle
With Contacts
Search Keywords:
AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub
得捷:
CONN D-SUB RCPT 25POS IDC
艾睿:
Conn D-Subminiature SKT 25 POS 2.76mm Crimp ST Cable Mount 25 Terminal 1 Port
Powell:
AMPLIMITE HDE
Online Components:
Conn D-Subminiature SKT 25 POS 2.76mm Crimp ST Cable Mount 25 Terminal 1 Port Automotive
Electro Sonic:
Conn D-Subminiature SKT 25 POS 2.76mm Crimp ST Cable Mount 25 Terminal 1 Port Automotive
触点数 25
极性 Female
触点电镀 Tin over Nickel, Tin Lead, Gold
排数 2
易燃性等级 UL 94 V-0
针脚数 25
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 V
引脚间距 2.74 mm
长度 53.4 mm
宽度 12.9 mm
高度 12.92 mm
引脚间距 2.74 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Superseded
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
