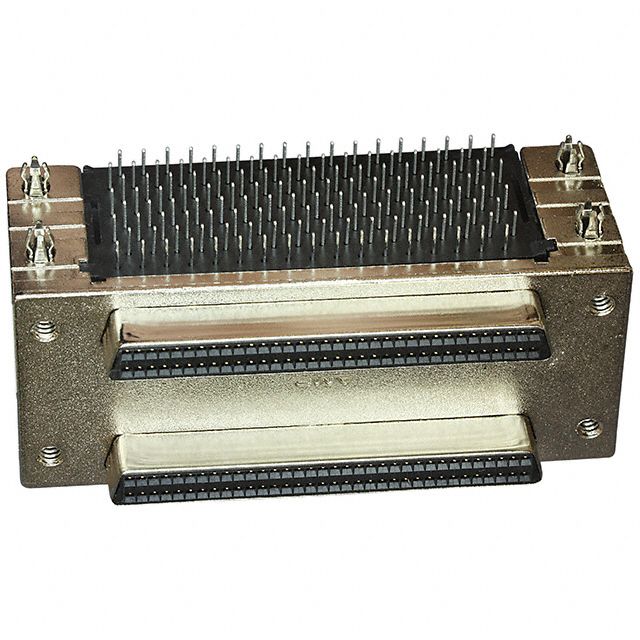

Conn D-Subminiature SKT/SKT 68/68POS 2.54mm Solder RA Thru-Hole 136 Terminal 2Port
Conn D-Subminiature SKT/SKT 68/68 POS 2.54mm Solder RA Thru-Hole 136 Terminal 2 Port
Product Highlights
Connector Configuration [Upper Conn./Lower Conn.] = Same Series
Receptacle over Receptacle
Mating Connector Lock Type = None
Without Mating Polarization
Yes PCB Retention Feature
Search Keywords:
Subminiature D, AMPLIMITE, box to box, d-sub, dsub, d sub
得捷:
CONN D-TYPE RCPT 68POS R/A SLDR
安富利:
Conn D-Subminiature SKT/SKT 68/68 POS 2.54mm Solder RA Thru-Hole 136 Terminal 2 Port
Verical:
Conn D-Subminiature SKT/SKT 68/68 POS 2.54mm Solder RA Thru-Hole 136 Terminal 2 Port
MASTER:
Conn D-Subminiature SKT/SKT 68/68 POS 2.54mm Solder RA Thru-Hole 136 Terminal 2 Port
Online Components:
Conn D-Subminiature SKT/SKT 68/68 POS 2.54mm Solder RA Thru-Hole 136 Terminal 2 Port
Electro Sonic:
Conn D-Subminiature SKT/SKT 68/68 POS 2.54mm Solder RA Thru-Hole 136 Terminal 2 Port
触点电镀 Tin over Nickel, Tin Lead, Gold
额定电流 1 A
排数 2, 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 68, 68
额定电压 30 V
工作电压Max 30 VAC
安装方式 Through Hole
引脚间距 1.27 mm
长度 64.4 mm
宽度 19.4 mm
高度 29.36 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Obsolete
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694050
