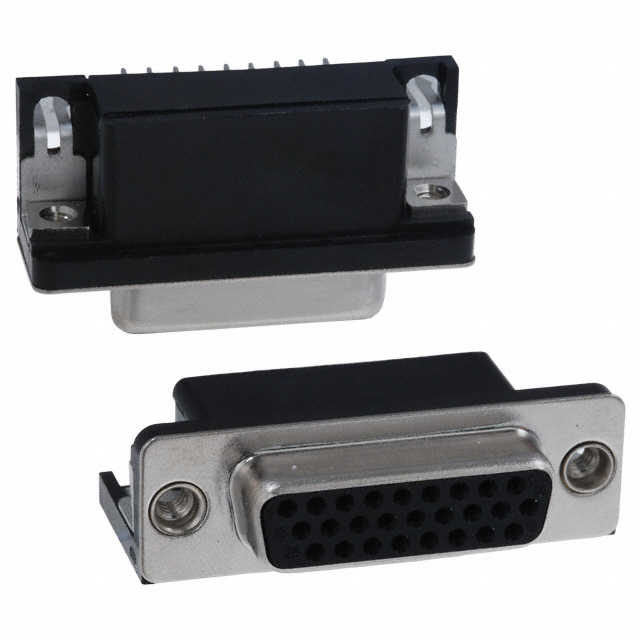

Connector D-Subminiature Receptacle 26Position 2.29mm Solder Right Angle Through Hole 26 Terminal 1Port Tray
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
得捷:
CONN D-SUB HD RCPT 26P R/A SLDR
Jameco:
Connector D-Subminiature Receptacle 26 Position 2.29mm Solder Right Angle Through Hole 26 Terminal 1 Port Tray
Powell:
AMPLIMITE HD22 Board Mount Connectors
Electro Sonic:
Conn D-Subminiature SKT 26 POS 2.29mm Solder RA Thru-Hole 26 Terminal 1 Port Tray
触点数 26
极性 Female
触点电镀 Gold, Tin over Nickel, Tin Lead
额定电流 2 A
排数 3
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 26
额定电压 125 V
安装方式 Through Hole
引脚间距 2.29 mm
长度 39.2 mm
宽度 21.0 mm
高度 12.5 mm
引脚间距 2.29 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Obsolete
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
