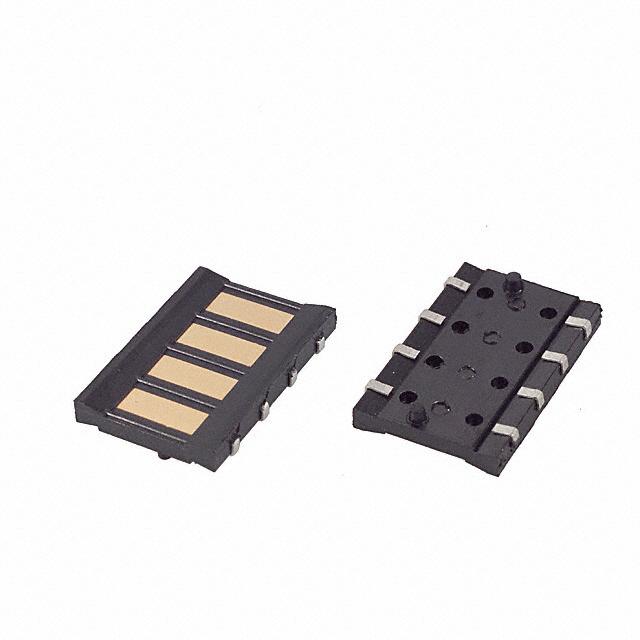

70ADJ-4-FL1G

BOURNS  70ADJ-4-FL1G  模制电池触点, 4触点, 3A, 母, SMD

针位弹簧 压缩触点，母型 连接器 表面贴装型

得捷:
CONN SPRING MOD FEMALE 4POS SMD

e络盟:
BOURNS  70ADJ-4-FL1G  模制电池触点, 4触点, 3A, 母, SMD

艾睿:
This robust modular contact 70ADJ-4-FL1G power connector from Bourns easily retains normal operation in harsh and stressful environments. This F connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 30 VDC. It has a female type gender. Its pitch is 4 mm. This connector has a single port. It has a straight body orientation. 70ADJ-4-FL1G is housed in thermoplastic. This device has a maximum current rating of 3 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 17 mm long, 2.3 mm tall and 11 mm deep. This power connector has an operating temperature range of -55 °C to 125 °C. Its 4 terminals use the solder termination method.

安富利:
Conn Battery F 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Embossed T/R

Verical:
Conn Modular Contact F 4 POS 4mm Solder ST SMD 4 Terminal 1 Port T/R

Newark:
# BOURNS  70ADJ-4-FL1G  Battery Contact, Copper Alloy, 30 VDC, 4 Contact, Socket, SMD, 70AD Series

MASTER:
Battery Modular Contact - Copper Alloy - 4mm - Solder - 30VDC - 4 Terminal - 1 Port.

Online Components:
Conn Modular Contact F 4 POS 4mm Solder ST SMD 4 Terminal 1 Port T/R

Electro Sonic:
Battery Modular Contact - Copper Alloy - 4mm - Solder - 30VDC - 4 Terminal - 1 Port.
