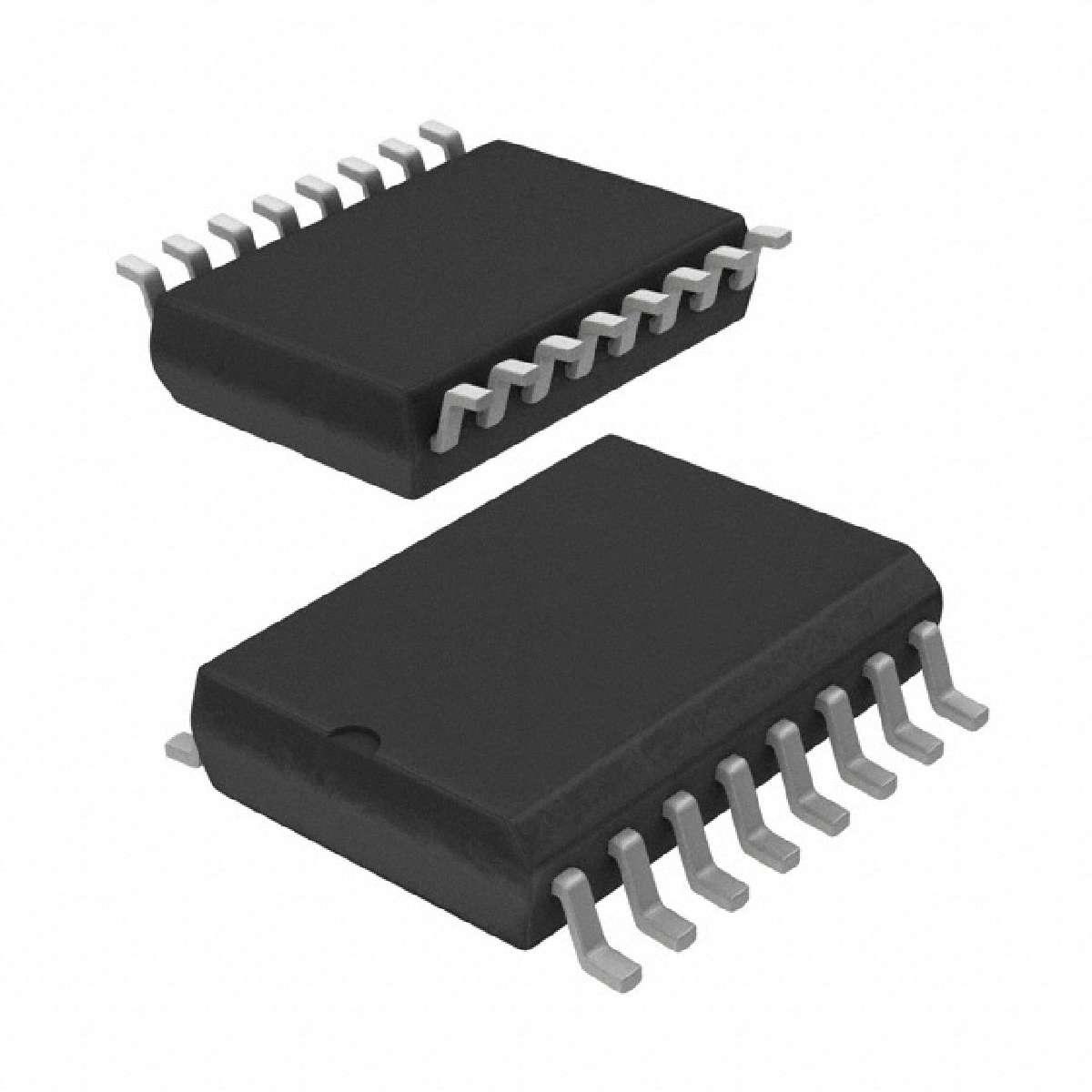

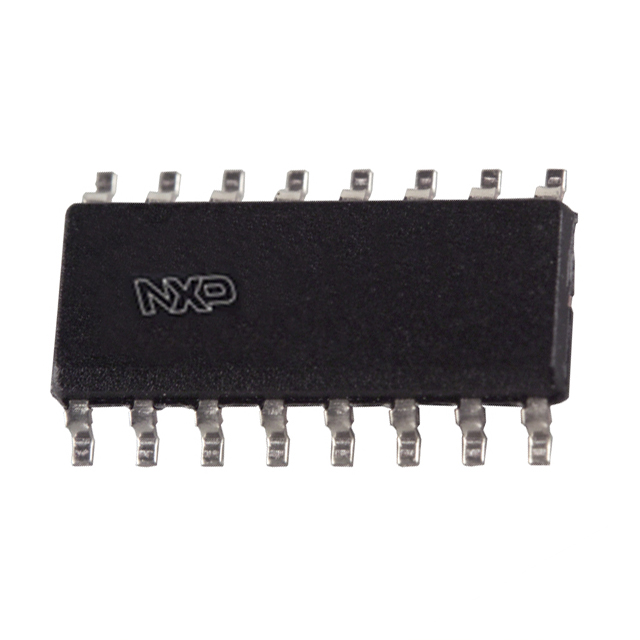

NXP 74HC4020D,652 芯片, 纹波二进制计数器, 101MHZ, SOIC-16
Do you want to convert between parallel and serial interfaces? If so, this binary counter shift register from Semiconductors is for you! This counter shift register has an operating temperature range of -40 °C to 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
针脚数 16
时钟频率 101 MHz
位数 14
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
高度 1.45 mm
封装 SOIC-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
74HC4020D,652 NXP 恩智浦 | 当前型号 | 当前型号 |
74HC4020D,653 恩智浦 | 完全替代 | 74HC4020D,652和74HC4020D,653的区别 |
SN74HC4060DR 德州仪器 | 功能相似 | 74HC4020D,652和SN74HC4060DR的区别 |
SN74HC4020D 德州仪器 | 功能相似 | 74HC4020D,652和SN74HC4020D的区别 |
