796683-8

Conn Terminal Block 8POS 5mm Solder ST Thru-Hole 17.5A/Contact

8 接线板 - 线至板 水平，带板 0.197"（5.00mm） 通孔

得捷:
TERM BLK 8POS SIDE ENTRY 5MM PCB

贸泽:
Fixed Terminal Blocks TERMI-BLOK PCB

艾睿:

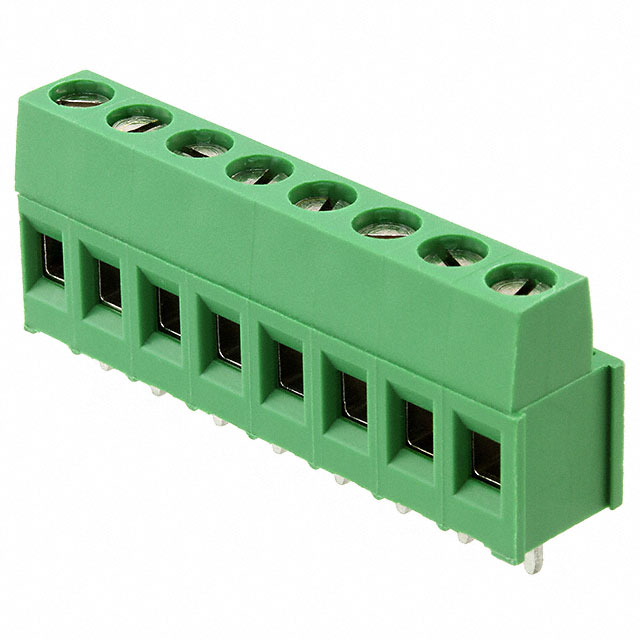

This eurostyle block 796683-8 PCB terminal block from TE Connectivity will join multiple circuits by connecting to the bare wire. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. It has a straight body orientation. Its pitch is 5 mm. This device has a maximum current rating of 17.5 A/contact. 796683-8 is housed in polyamide 6/6. Its wire is 12-30 AWG. It uses the solder termination method. This product is 40.5 mm long, 15.2 mm tall and 9 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C.

安富利:
Conn Terminal Block 8 POS 5mm Solder ST Thru-Hole 17.5A/Contact

Chip1Stop:
Conn Eurostyle Block 8 POS 5mm Solder ST Thru-Hole 17.5A/Contact Box

Verical:
Conn Eurostyle Block HDR 8 POS 5mm Solder ST Thru-Hole 17.5A/Contact Box

MASTER:
Conn Eurostyle Block HDR 8 POS 5mm Solder ST Thru-Hole 17.5A/Contact Box

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PCB MOUNT 90 8P.

Electro Sonic:
TERMI-BLOK PCB MOUNT 90 8P.
