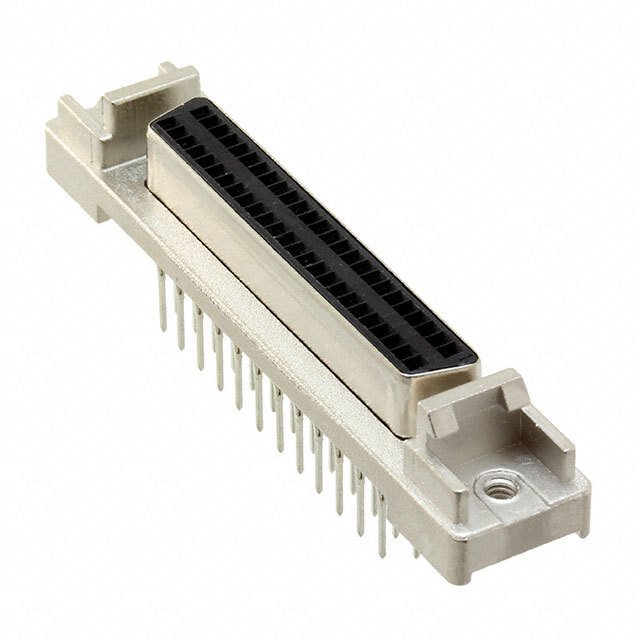

Conn D-Subminiature F 50POS 2.54mm Press Fit ST Thru-Hole 50 Terminal 1Port
50 50SR VRT RCPT,L,R,ACT PIN
得捷:
CONN D-TYPE RCPT 50P VERT PRESS
艾睿:
Conn D-Subminiature F 50 POS 2.54mm Press Fit ST Thru-Hole 50 Terminal 1 Port Tube
Chip1Stop:
Conn D-Subminiature F 50 POS 2.54mm Press Fit ST Thru-Hole 50 Terminal 1 Port
Verical:
Conn D-Subminiature F 50 POS 2.54mm Press Fit ST Thru-Hole 50 Terminal 1 Port Tube
MASTER:
RECEPTACLE ASSEMBLY, SHIELDED, VERTICAL, RAILED, ACTION PIN FOR .125 TO .200 THICK BD,
Powell:
.050 Series Board Mount Connectors
Online Components:
50 50SR VRT RCPT,L,R,ACT PIN
Electro Sonic:
50 50SR VRT RCPT,L,R,ACT PIN
触点数 50
触点电镀 Gold
额定电流 1 A
绝缘电阻 1000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 50
屏蔽 Yes
额定电流Max 1A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 30 VAC
额定电压 30 V
工作电压Max 30 VAC
接触电阻Max 25 mΩ
安装方式 Through Hole
引脚间距 1.27 mm
长度 52.45 mm
宽度 10.31 mm
高度 8.92 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
