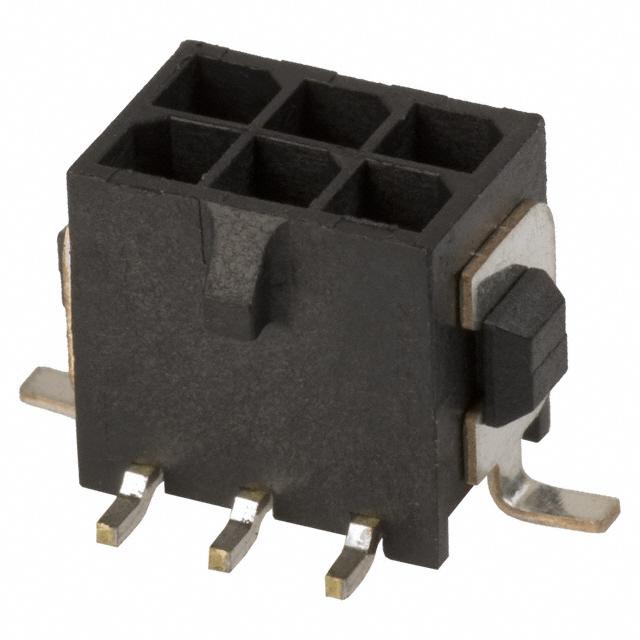

Conn Power HDR 6POS 3mm Solder ST SMD 6 Terminal 1Port
Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port T/R
Product Highlights
Connector
With Contacts
Housing Gender = Header - Pin
Contact Gender = Pin
Surface Mount Contact Termination Type
Search Keywords:
wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
触点数 6
极性 Male
触点电镀 Tin Lead
绝缘电阻 1000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 6
拔插次数 10
安装角度 180 °
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚间距 3.00 mm
长度 9.86 mm
宽度 6.86 mm
高度 9.24 mm
引脚间距 3.00 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Superseded
包装方式 Tape
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
