7214N

EBM PAPST  7214N  轴流风扇, 管轴式, 圆形, 标准或基本速度, 滚珠, 7200N系列, 24 VDC, 150 mm, 55 mm, 211.9 cu.ft/min, 360 m³/h

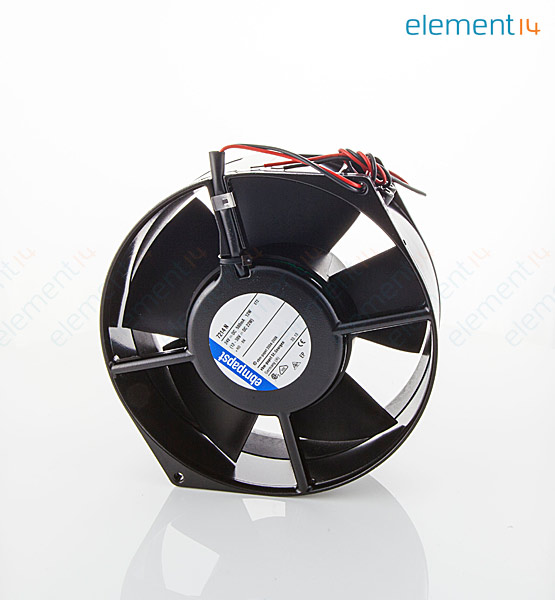

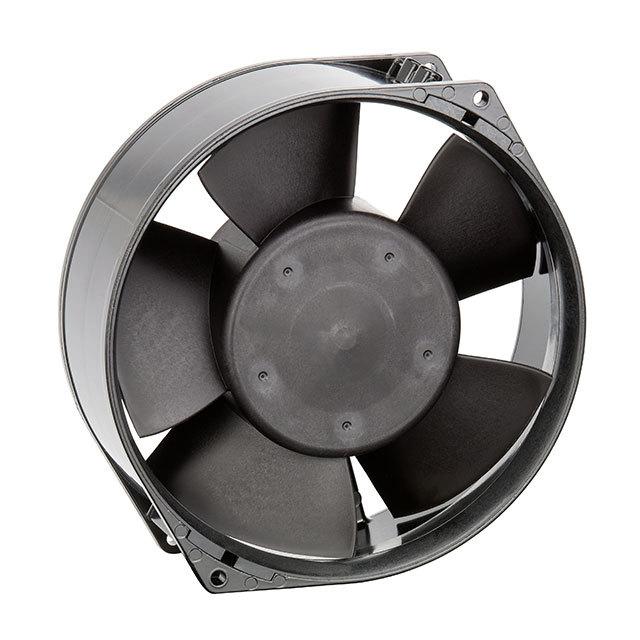

The is a 24VDC standard or basic speed Axial Fan with speed signal, alarm signal, ball bearing and wire leaded power connection. Die-cast aluminium housing and fibreglass-reinforced plastic PA impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 22AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

3050RPM Speed rating

.

12W Rated power

.

-25 to 72°C Maximum ambient temperature range

.

Electronic blocking protection

.

Protected against reverse polarity and locking
