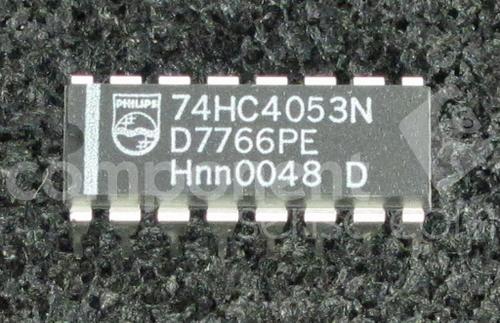

74HC4053N

NXP  74HC4053N  芯片, 74HC CMOS逻辑器件

The is a triple 2-channel Analogue Multiplexer or Demultiplexer is a high-speed Si-gate CMOS device and is pin compatible with the HEF4053B. It is specified in compliance with JEDEC standard no-7A. The 74HC4053 is triple 2-channel analogue multiplexer/demultiplexer with a common enable input E. Each multiplexer/demultiplexer has two independent inputs/outputs nY0 and nY1, a common input/output nZ and three digital select inputs Sn. With E low, one of the two switches is selected low-impedance ON-state by S1 to S3. With E high, all switches are in the high-impedance OFF-state, independent of S1 to S3.

.

Logic level translation - to enable 5V logic to communicate with ±5V analogue signals

.

Typical break before make built-in

.

ESD protection HBM JESD22-A114F exceeds 2000V

ESD sensitive device, take proper precaution while handling the device.
