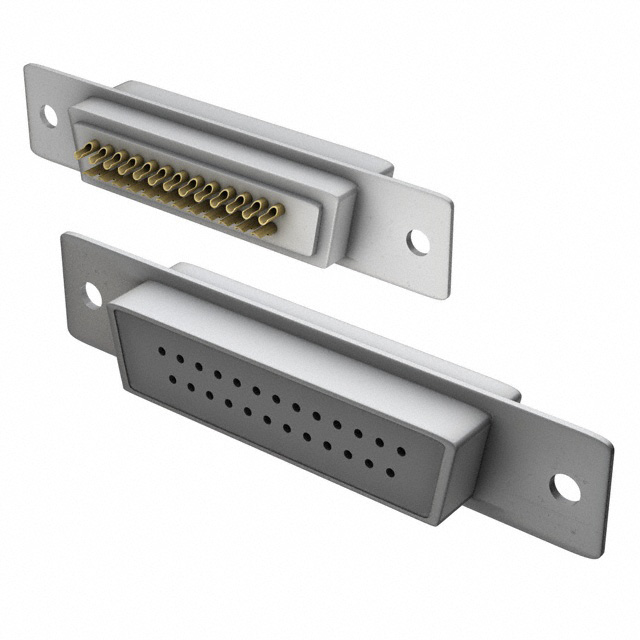

NORCOMP 772-E25-203R001 连接器, D sub, 堆叠式, Seal D系列, DB, 插座, 25 触点, 钢主体, 焊接
The Seal-D 772-E series Solder Cup D-sub Connectors with male and female connectors. It has machined brass contact with male and female pins, gold flash plating on entire contact and glass-filled thermoplastic insulator, steel with nickel-plating shell. Unique sealing methods maintains STD D-sub profile allowing drop in replacement of current D-sub connectors.
- .
- Available in 9, 15 and 25 sizes/positions
- .
- UL94V-0 Flammability
- .
- IP67 Protection
触点数 25
极性 Female
线规 20AWG ~ 26AWG
触点电镀 Gold
额定电流 5 A
排数 2
针脚数 25
工作电压Max 500 VAC
安装方式 Solder
高度 12.6 mm
颜色 White
触点材质 Brass
工作温度 -50℃ ~ 100℃
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, 通信与网络, 工业, Communications & Networking, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
