73044

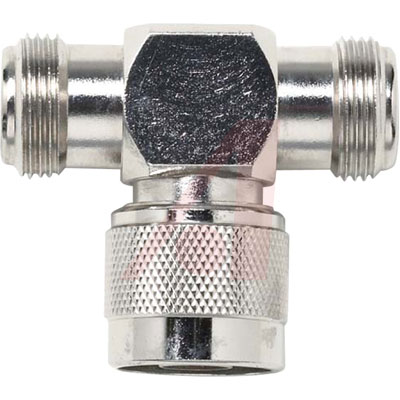

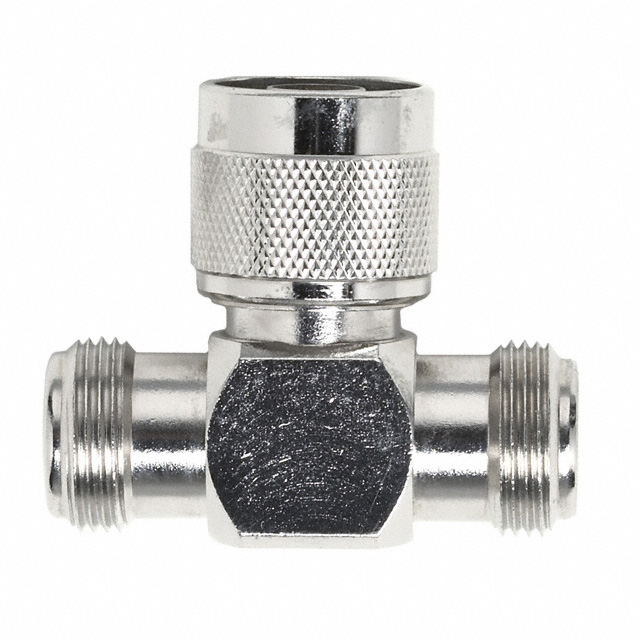

CONN ADAPT PLUG TO JACK N 50Ω

**Materials:** **Center Conductor:** \- Male: Brass, Gold Plated - Female: Phosphor Bronze, Gold Plated **Connector Body:** Brass, Nickel Plated **Insulators:** PTFE **Specifications:**

* Impedance: 50 Ω

* Frequency Range: DC–4 GHz

* Contact Resistance: - Center Conductor: ≤1.0 mΩ Outer Conductor: ≤0.2 mΩ Insulation Reistance: ≤ 5000 MΩ Dielectric Withstand Voltage: 1500 V For CE compliance, do not hold in hand when voltages exceed 33 VRMS/70 VDC Number of Insertions: 500 Cycles Minimum **Features:**

* DC–4 GHz Bandwidth

* Connectors Are precision machined

* Meets Interface Requirements MIL-C-39012
