NXP 74HCT4051D,118 芯片, 74HCT CMOS, SMD, 74HCT4051, 整卷
The 74HCT4051D is a single-pole octal-throw SP8T Analog Switch suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs S0, S1 and S2, eight independent inputs/outputs Yn, a common input/output Z and a digital enable input E\\. When E\ is high, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
电源电压DC 4.50V min
输出接口数 8
输出电流 4.00 mA
供电电流 16 µA
电路数 1
通道数 1
针脚数 16
耗散功率 0.5 W
逻辑门个数 1
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 180 MHz
耗散功率Max 500 mW
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16

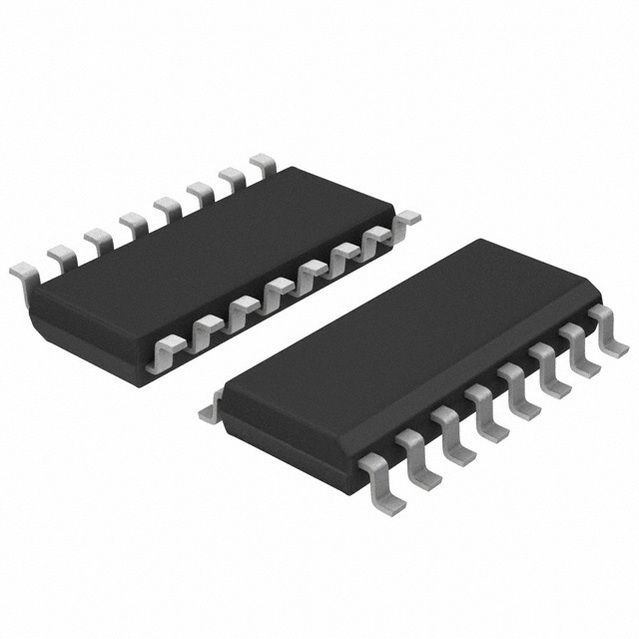

封装 SOIC-16
高度 1.45 mm
封装 SOIC-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Computers & Computer Peripherals, Signal Processing, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
