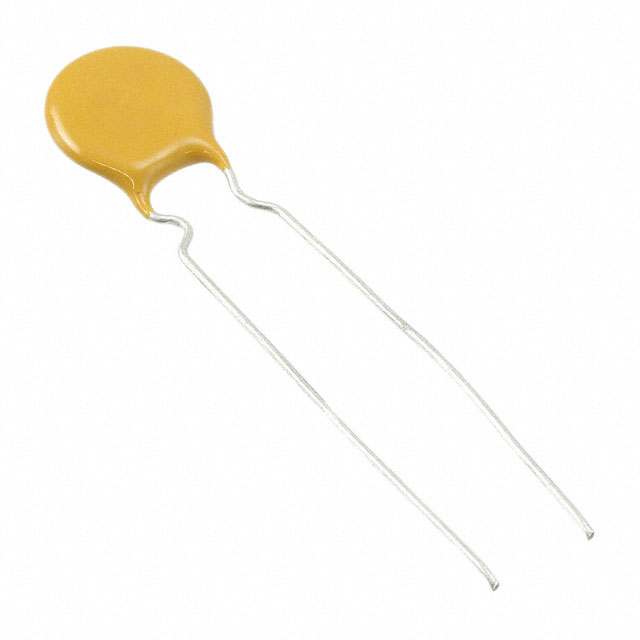

LITTELFUSE 72R065XPR PPTC Resettable Fuse, Through Hole, POLYFUSE 72R Series, 650mA, 1.3A, 72VDC, -40℃
聚合物 PTC 自恢复保险丝 72V Ih 通孔 径向,圆片式
立创商城:
72R065XPR
得捷:
PTC RESET FUSE 72V 650MA RADIAL
艾睿:
This 72R065XPR positive temperature coefficient device from Littelfuse is an automatically resetting fuse. This device has a maximum current rating of 512KB. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has STM32F terminals. This product is 526 mm long with a diameter of 2 mm. This product&s;s terminal pitch is 2 mm.
Chip1Stop:
PTC Resettable Fuse 0.65Ahold 1.3Atrip 72VDC 40A 0.88W 5.3s 0.31Ohm Radial 9.4 X 3.1mm Ammo Pack
Newark:
# LITTELFUSE 72R065XPR PPTC Resettable Fuse, Through Hole, POLYFUSE 72R Series, 650 mA, 1.3 A, 72 VDC, -40 °C
额定电压DC 72.0 V
工作电压 72.0 V
跳闸时间 5.3 s
耗散功率 0.88 W
电阻 0.72 Ω
保持电流 650 mA
跳闸电流 1.3 A
额定电流Max 40 A
保持电流Max 650 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 72 VDC
额定电压 72 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc

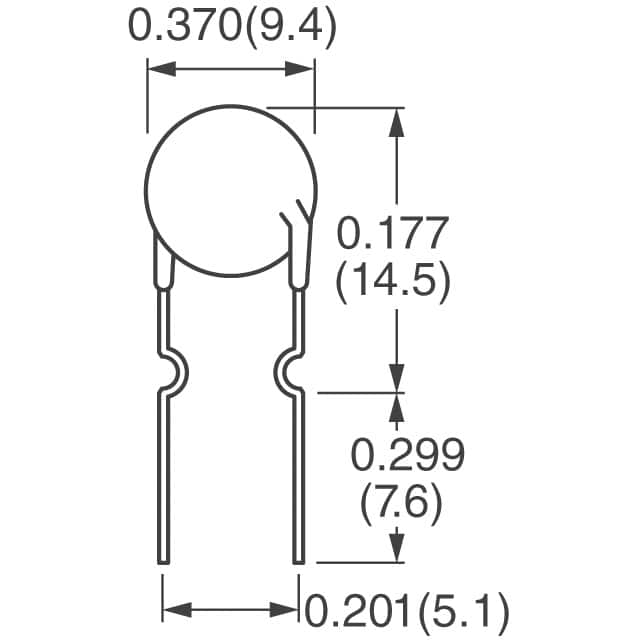

长度 14.5 mm
宽度 3.1 mm
高度 3.1 mm
封装 Radial, Disc
厚度 3.1 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
