725AXXBC3ML-12D

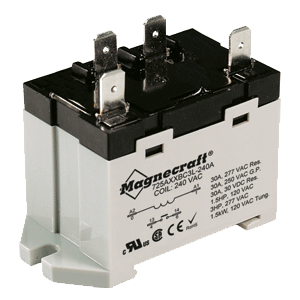

725AXXBC3ML-12D图片1
725AXXBC3ML-12D图片2
725AXXBC3ML-12D图片3
725AXXBC3ML-12D概述

SPST-NO DIN Rail Panel Mount Non-Latching Relay Blade, 30A, 12V dc

The 725 Power Relay Series features high dielectric strength and ratings up to 3 HP, 30-Amps. The RoHS compliant 725 Relay easily handles the demands of high-current applications at loads that rival the competition. Flange, DIN, panel, and plug-in mounting options are available with quick-connect and screw terminal choices for every installation need. Features, such as push-to-test buttons, LEDs, and flag indicators offer unparalleled flexibility in design and deployment. The full-feature cover is standard on plug-in models.

**Advantages:

**

* Switches High-Current Loads

* Withstands Severe Voltage Surges and Spikes

* Increases Functionality and Ease of Use

* Offers Push-To-Test Button, Lock-Down Door, LED, Flag Indicators and ID Tag

* Prevents Operator from Touching Live Circuits IP 20 Degree of Protection

* Meets European Regulations

**Benefits:**

* Enables Use in High-Power Switching Applications

* Provides Protection for Surrounding Circuits

* Provides Solutions for a Wide Variety of Applications

* Simplifies and Expedites Installation and Testing

* Increases Safety in Work Environment

* Satisfies Import Requirements

725AXXBC3ML-12D中文资料参数规格
技术参数

额定电流 30 A

触点类型 SPST-NO

线圈电压 12 VDC

载流 30.0 A

线圈电压DC 12 V

外形尺寸

宽度 33.1 mm

高度 39.4 mm

物理参数

触点材质 Silver Alloy

其他

产品生命周期 100000 Cycles

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买725AXXBC3ML-12D
型号: 725AXXBC3ML-12D
描述:SPST-NO DIN Rail Panel Mount Non-Latching Relay Blade, 30A, 12V dc
