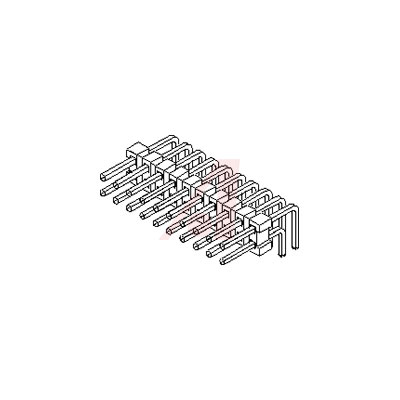

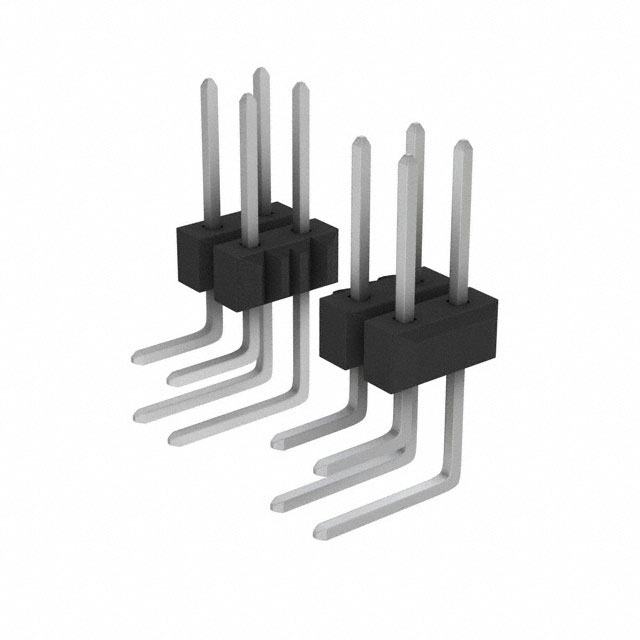

2.54毫米（ .100“ ）间距C- Grid®分离针座，薄型，双排，右AngleHigh温度， 8回路，锡（Sn ）镀层 2.54mm .100" Pitch C-Grid® Breakaway Header, Low Profile, Dual Row, Right AngleHigh Temperature, 8 Circuits, Tin Sn Plating
C-Grid® Products
The 2.54mm pitch C-Grid® products offer the largest number of variations and cabling configurations in the industry. C-Grid® is a dual row, board-to-board system. The system includes: vertical and right angle headers in breakaway, shrouded and dual-body styles; vertical and right angle receptacles; headers and receptacles for SMT applications; press-fit headers and a 2-circuit shunt completes the C-Grid product line.
This product family is suitable for low power signal applications such as computers, medical instruments, and automotive controls.
触点数 8
触点电镀 Tin
额定电压DC 250 V
额定电流 3.00 A
排数 2
灼热丝测试标准 Non-Compliant
无卤素状态 Low Halogen
方向 Right Angle
电路数 8
易燃性等级 UL 94 V-0
针脚数 8
拔插次数 25
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 250 V
接触电阻Max 15 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 10.6 mm
宽度 2.29 mm
高度 5.08 mm
引脚间距 2.54 mm
外壳颜色 Black
触点材质 Tin
材质 Brass
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
