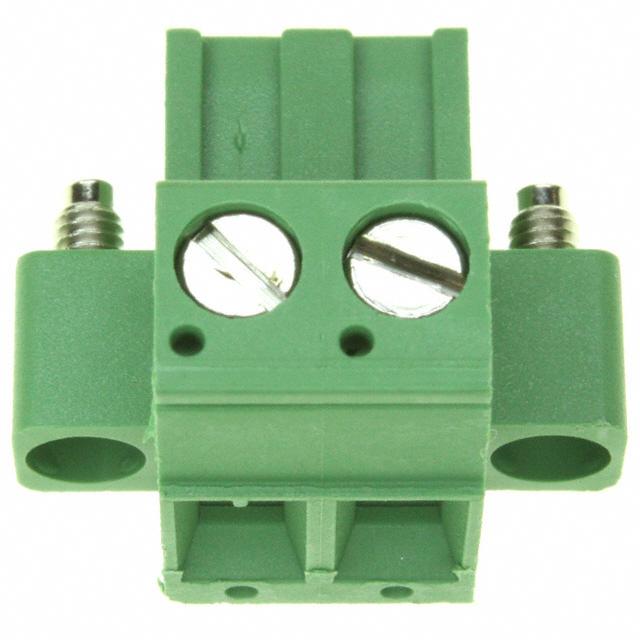

796859-2

5.08mm 排数:1 每排P数:2

2 针位端子块 插头，母插口 0.200"（5.08mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 2POS STR 5.08MM

立创商城:
5.08mm 排数:1 每排P数:2

艾睿:
Create a bridge between two sides of a circuit by implementing this eurostyle block 796859-2 PCB terminal block from TE Connectivity. This F connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin. It has a female type gender. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. Its pitch is 5.08 mm. 796859-2 is housed in polyamide 6/6. This device has a maximum current rating of 15 A/contact. This product is 19.96 mm long, 15.5 mm tall and 18.4 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 12-30 AWG. It uses the screw termination method.

Newark:
# AMP - TE CONNECTIVITY  796859-2  2 POS TERMI-BLOK PLUG RT ANGLE New

MASTER:
Conn Eurostyle Block F 2 POS 5.08mm Screw RA Panel Mount 15A/Contact Carton

Powell:
Terminal Block Connectors

Online Components:
2 POS TERMI-BLOK PLUG RT ANGLE

Electro Sonic:
2 POS TERMI-BLOK PLUG RT ANGLE
