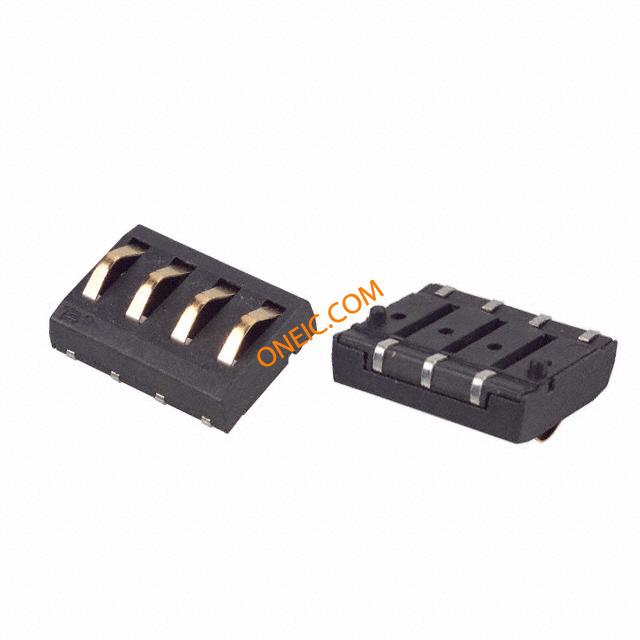

70ADJ-4-ML1

公元70年/男性 - 模块化联系 70AD/Male - Modular Contact

Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Tube

得捷:
CONN SPRING MOD MALE 4POS SMD

贸泽:
电池触点 4 Position Male SMD

艾睿:
Use the modular contact 70ADJ-4-ML1 power connector from Bourns to power up your circuit with the least amount of losses. This M connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 4 mm. It has a straight body orientation. It has a maximum voltage rating of 30 VDC. This connector has a single port. It has a male type gender. 70ADJ-4-ML1 is housed in thermoplastic. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has an operating temperature range of -55 °C to 125 °C. Its 4 terminals use the solder termination method. This product is 15.7 mm long, 5.65 mm tall and 11 mm deep.

Allied Electronics:
MODULAR CONTACT; SMT; MALE; 30V DC; 4 CONTACTS; LOW PROFILE; LOCATOR PINS

安富利:
Conn Battery M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Tube

Chip1Stop:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Tube

Verical:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Tube

Newark:
# BOURNS  70ADJ-4-ML1  Battery Contact, Copper Alloy, 30 VDC, 4 Contact, Pin, SMD, 70AD Series

MASTER:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Tube

Online Components:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Tube

Electro Sonic:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Tube
