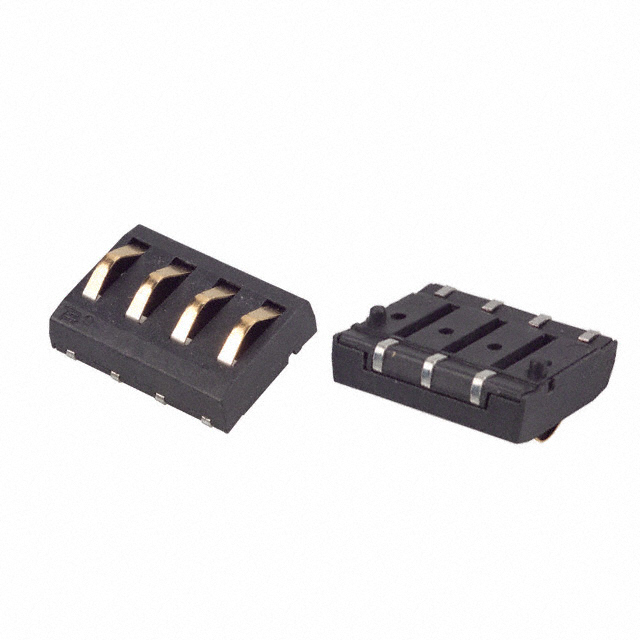

公元70年/男性 - 模块化联系 70AD/Male - Modular Contact
针位弹簧 压缩触点,公型 表面贴装型
得捷:
CONN SPRING MOD MALE 4POS SMD
贸泽:
电池触点 4 Position Male SMD
艾睿:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port T/R
安富利:
Conn Battery M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Embossed T/R
Chip1Stop:
Conn Battery M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port Embossed T/R
Verical:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port T/R
Newark:
# BOURNS 70ADJ-4-ML1G Battery Contact, Copper Alloy, 30 VDC, 4 Contact, Pin, SMD, 70AD Series
MASTER:
Battery Modular Contact - Copper Alloy - 4mm - Solder - 30VDC - 4 Terminal - 1 Port.
Online Components:
Conn Modular Contact M 4 POS 4mm Solder ST SMD 4 Terminal 1 Port T/R
Electro Sonic:
Battery Modular Contact - Copper Alloy - 4mm - Solder - 30VDC - 4 Terminal - 1 Port.
触点数 4
极性 Male
触点电镀 Gold
额定电压DC 30.0 V
绝缘电阻 500 MΩ
排数 1
拔插次数 5000
额定电流Max 3A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 30 VDC
额定电压 30 VDC
接触电阻Max 25 mΩ
安装方式 Surface Mount
封装 SMD
长度 15.7 mm
宽度 11 mm
高度 5.65 mm
封装 SMD
颜色 Black
触点材质 Copper Alloy
材质 Copper Alloy
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536694050
