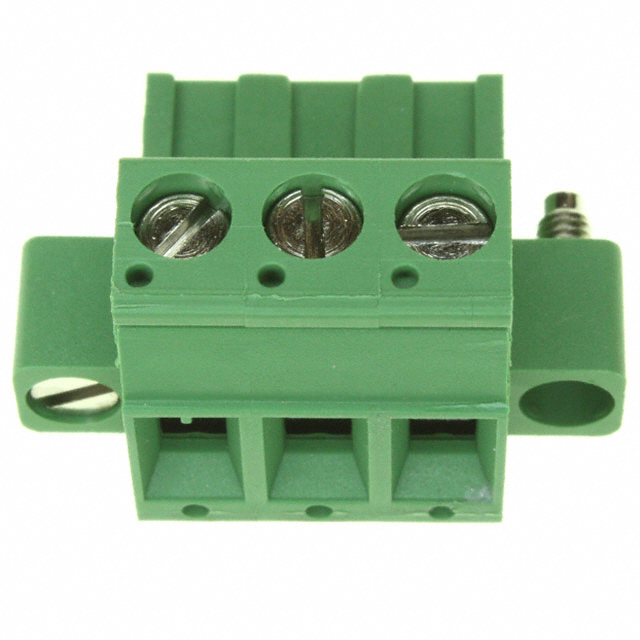

796859-3

Conn Terminal Block F 3POS 5.08mm Screw RA Panel Mount 15A/Contact

3 针位端子块 插头，母插口 0.200"（5.08mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 3POS STR 5.08MM

艾睿:
Join your electrical circuits and ensure strong connections with this eurostyle block 796859-3 PCB terminal block from TE Connectivity. This F connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. Its pitch is 5.08 mm. It has a right angle body orientation. It has a female type gender. This device has a maximum current rating of 15 A/contact. 796859-3 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 25.04 mm long, 15.5 mm tall and 18.4 mm deep. Its wire is 12-30 AWG. It uses the screw termination method.

安富利:
Conn Terminal Block F 3 POS 5.08mm Screw RA Panel Mount 15A/Contact

Chip1Stop:
Conn Terminal Block F 3 POS 5.08mm Screw RA Panel Mount 15A/Contact

Verical:
Conn Eurostyle Block F 3 POS 5.08mm Screw RA Panel Mount 15A/Contact Carton

MASTER:
3 POS TERMI-BLOK PLUG RT ANGLE

Powell:
Terminal Block Connectors

Online Components:
3 POS TERMI-BLOK PLUG RT ANGLE

Electro Sonic:
3 POS TERMI-BLOK PLUG RT ANGLE
