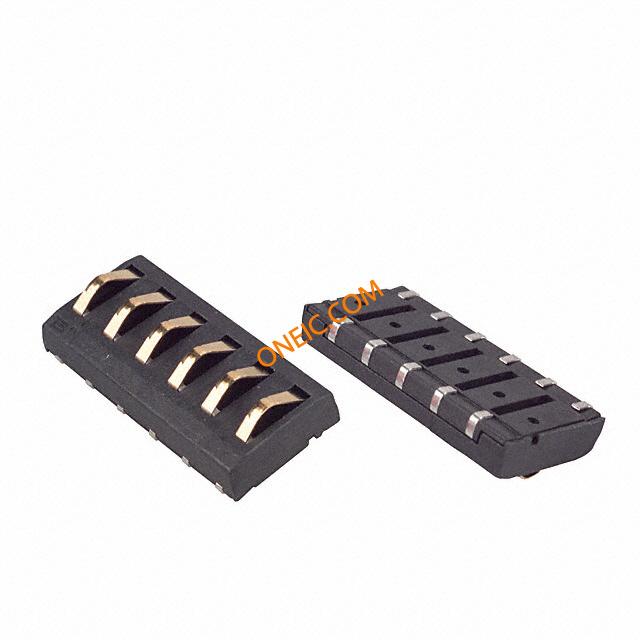

70ADJ-6-ML0

公元70年/男性 - 模块化联系 70AD/Male - Modular Contact

针位弹簧 压缩触点，公型 表面贴装型

得捷:
CONN SPRING MOD MALE 6POS SMD

艾睿:
The modular contact 70ADJ-6-ML0 power connector from Bourns is perfect for powering your circuit because it comes with the least amount of losses. This M connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. Its pitch is 4 mm. It has a straight body orientation. It has a maximum voltage rating of 30 VDC. It has a male type gender. 70ADJ-6-ML0 is housed in thermoplastic. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product is 23.7 mm long, 5.65 mm tall and 11 mm deep. Its 6 terminals use the solder termination method.

安富利:
Conn Battery M 6 POS 4mm Solder ST SMD 6 Terminal 1 Port Tube

Chip1Stop:
Conn Modular Contact M 6 POS 4mm Solder ST SMD 6 Terminal 1 Port Tube

Verical:
Conn Modular Contact M 6 POS 4mm Solder ST SMD 6 Terminal 1 Port Tube

Newark:
# BOURNS  70ADJ-6-ML0  Battery Contact, Copper Alloy, 30 VDC, 6 Contact, Pin, SMD, 70AD Series

MASTER:
Conn Modular Contact M 6 POS 4mm Solder ST SMD 6 Terminal 1 Port Tube

Online Components:
Conn Modular Contact M 6 POS 4mm Solder ST SMD 6 Terminal 1 Port Tube

Electro Sonic:
Conn Modular Contact M 6 POS 4mm Solder ST SMD 6 Terminal 1 Port Tube
