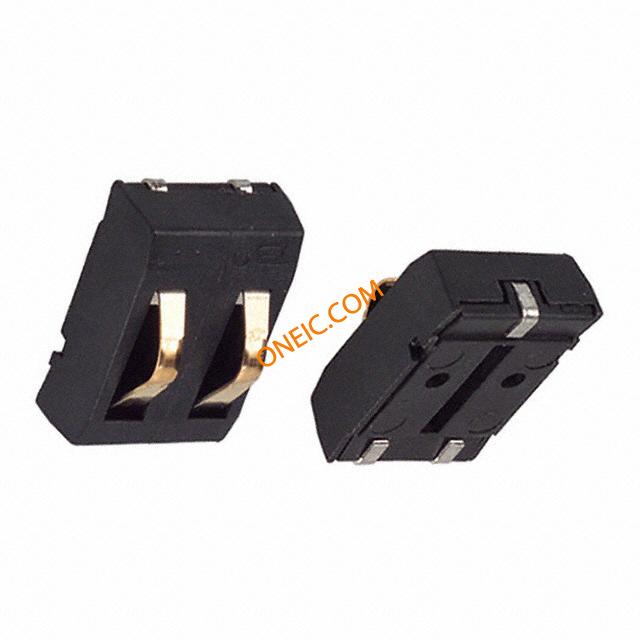

70ADJ-2-ML0G

公元70年/男性 - 模块化联系 70AD/Male - Modular Contact

针位弹簧

得捷:
CONN SPRING MOD MALE 2POS SMD

贸泽:
Battery Contacts 2 Position Male SMD

艾睿:
Use the modular contact 70ADJ-2-ML0G power connector from Bourns to power up your circuit with the least amount of losses. This M connector&s;s 2 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 30 VDC. It has a straight body orientation. Its pitch is 4 mm. It has a male type gender. This connector has a single port. This device has a maximum current rating of 3 A/contact. 70ADJ-2-ML0G is housed in thermoplastic. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This power connector has an operating temperature range of -55 °C to 125 °C. Its 2 terminals use the solder termination method. This product is 7.7 mm long, 5.65 mm tall and 11 mm deep.

安富利:
Conn Battery M 2 POS 4mm Solder ST SMD 2 Terminal 1 Port Embossed T/R

Verical:
Conn Modular Contact M 2 POS 4mm Solder ST SMD 2 Terminal 1 Port T/R

Newark:
# BOURNS  70ADJ-2-ML0G  Battery Contact, Copper Alloy, 30 VDC, 2 Contact, Pin, SMD, 70AD Series

MASTER:
Battery Modular Contact - Copper Alloy - 4mm - Solder - 30VDC - 2 Terminal - 1 Port.

Online Components:
Conn Modular Contact M 2 POS 4mm Solder ST SMD 2 Terminal 1 Port T/R

Electro Sonic:
Battery Modular Contact - Copper Alloy - 4mm - Solder - 30VDC - 2 Terminal - 1 Port.
