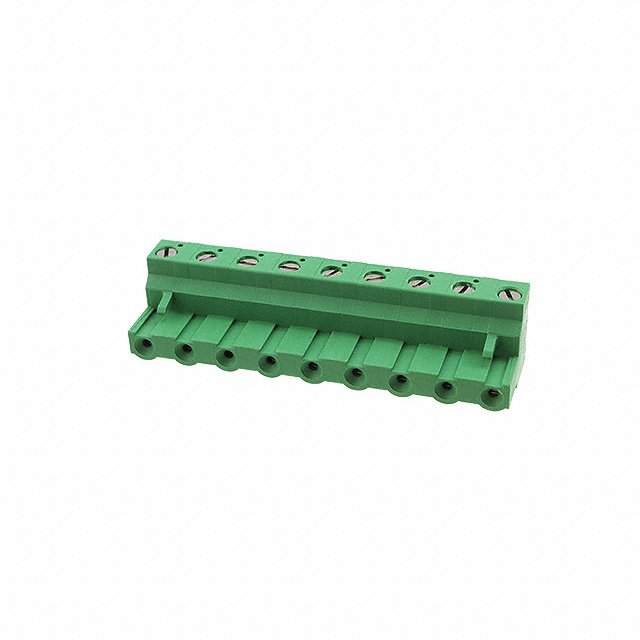

796981-9

Conn Terminal Block F 9POS 7.62mm Screw RA Cable Mount 15A/Contact

9 针位端子块 插头，母插口 0.300"（7.62mm） 180° 自由悬挂

得捷:
TERM BLOCK PLUG 9POS STR 7.62MM

贸泽:
Pluggable Terminal Blocks 9 POS TERMI-BLOK R/A PLUG 7.62

艾睿:
Perfect for troubleshooting this eurostyle block 796981-9 PCB terminal block manufactured from TE Connectivity will help isolate sections of a circuit. This F connector&s;s 9 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 300 VAC. Its pitch is 7.62 mm. This is a 1-row connector. This device has a maximum current rating of 15 A/contact. 796981-9 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 12-30 AWG. It uses the screw termination method. This product is 66.58 mm long, 15.5 mm tall and 18.4 mm deep.

安富利:
Conn Terminal Block F 9 POS 7.62mm Screw RA Cable Mount 15A/Contact

Chip1Stop:
Conn Eurostyle Block F 9 POS 7.62mm Screw RA Cable Mount 15A/Contact Box

Verical:
Conn Eurostyle Block F 9 POS 7.62mm Screw RA Cable Mount 15A/Contact Box

Powell:
Terminal Block Connectors
