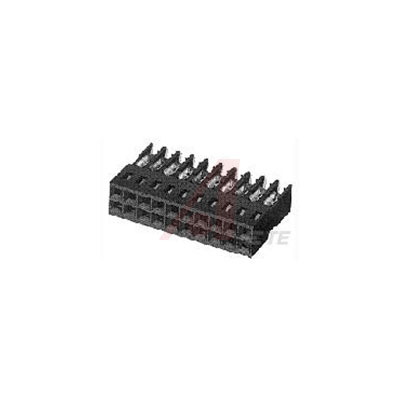

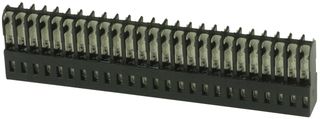

Conn IDC Connector RCP 50POS 2.54mm IDT ST Cable Mount
* Operating Temperature: –20°C to +80°C
* Contact Rating: 6 A @ 125 VAC, 3 A @ 250 VAC
* Insulation Resistance: 1000 Megohms Min. @ 500 VDC Min. for 1 Minute
* Dielectric Strength: 1500 VAC
艾睿:
50 AMPMODU MT ASSY DR.100CL SN
Allied Electronics:
Receptacle; MT IDC; 26 to 22 AWG; Insulation Displacement Crimp IDC; 50 Pos.
Chip1Stop:
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount
Newark:
# AMP - TE CONNECTIVITY 7-102448-3 Wire-To-Board Connector, 2.54 mm, 50 Contacts, Receptacle, AMPMODU MT Series, IDC / IDT, 2 Rows
MASTER:
AMPMODU MT, RCPT ASSY, STANDARD PRESSURE CONTACTS FOR 20-22 AWG WIRE SIZE
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
50 AMPMODU MT ASSY DR.100CL SN
Electro Sonic:
50 AMPMODU MT ASSY DR.100CL SN
触点数 50
极性 Female
触点电镀 Gold, Tin
绝缘电阻 5.00 GΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 50
触点额定电流 3.00 A
额定电流Max 3A/触头
接触电阻Max 15 mΩ
引脚间距 2.54 mm
长度 63.5 mm
宽度 15.24 mm
高度 6.1 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
