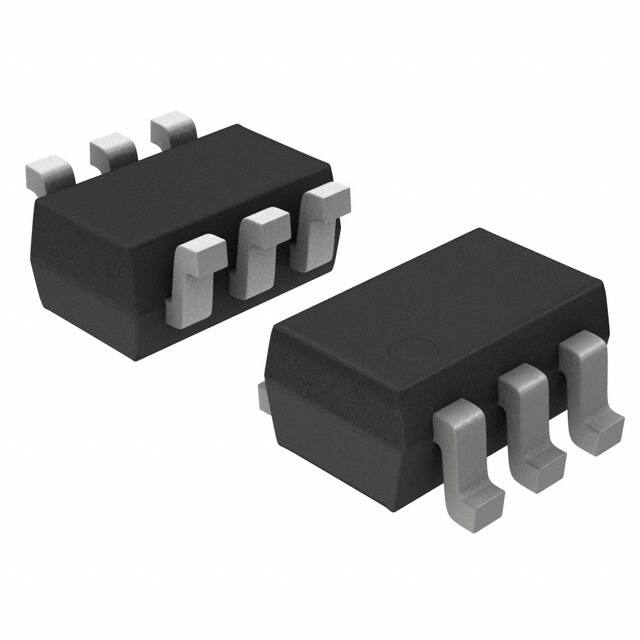

NXP 74HC2G14GW,125 非门, HC系列, 施密特触发, 1输入, 2V至6V, SOT-363-6
General description
The 74HC2G14; 74HCT2G14 is a high-speed Si-gate CMOS device. The 74HC2G14; 74HCT2G14 provides two inverting buffers with Schmitt trigger action which accept standard input signals. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. The inputs switch at different points for positive and negative-going signals. The difference between the positive voltage VT+ and the negative voltage VT− is defined as the input
hysteresis voltage VH.
Features
■ Wide supply voltage range from 2.0 V to 6.0 V
■ Complies with JEDEC standard no. 7A
■ High noise immunity
■ ESD protection:
◆ HBM JESD22-A114-D exceeds 2000 V
◆ MM JESD22-A115-A exceeds 200 V
■ Low power dissipation
■ Balanced propagation delays
■ Unlimited input rise and fall times
■ Multiple package options
■ Specified from −40 °C to +85 °C and −40 °C to +125 °C
Applications
■ Wave and pulse shaper for highly noisy environments
■ Astable multivibrators
■ Monostable multivibrators
电源电压DC 2.00V min
输出电流 2.60 mA
电路数 2
针脚数 6
逻辑门个数 1
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 6
封装 SOT-36-3
高度 1 mm
封装 SOT-36-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
