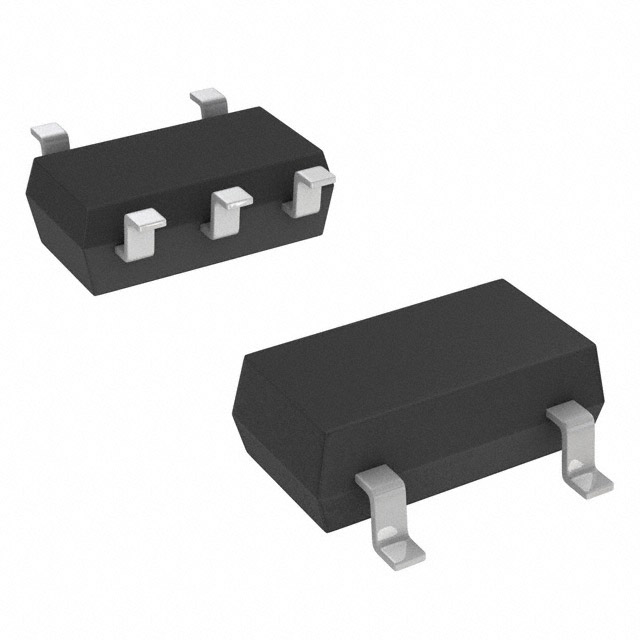

74LVC1G00GW,125图片8
74LVC1G00GW,125图片9
74LVC1G00GW,125图片10

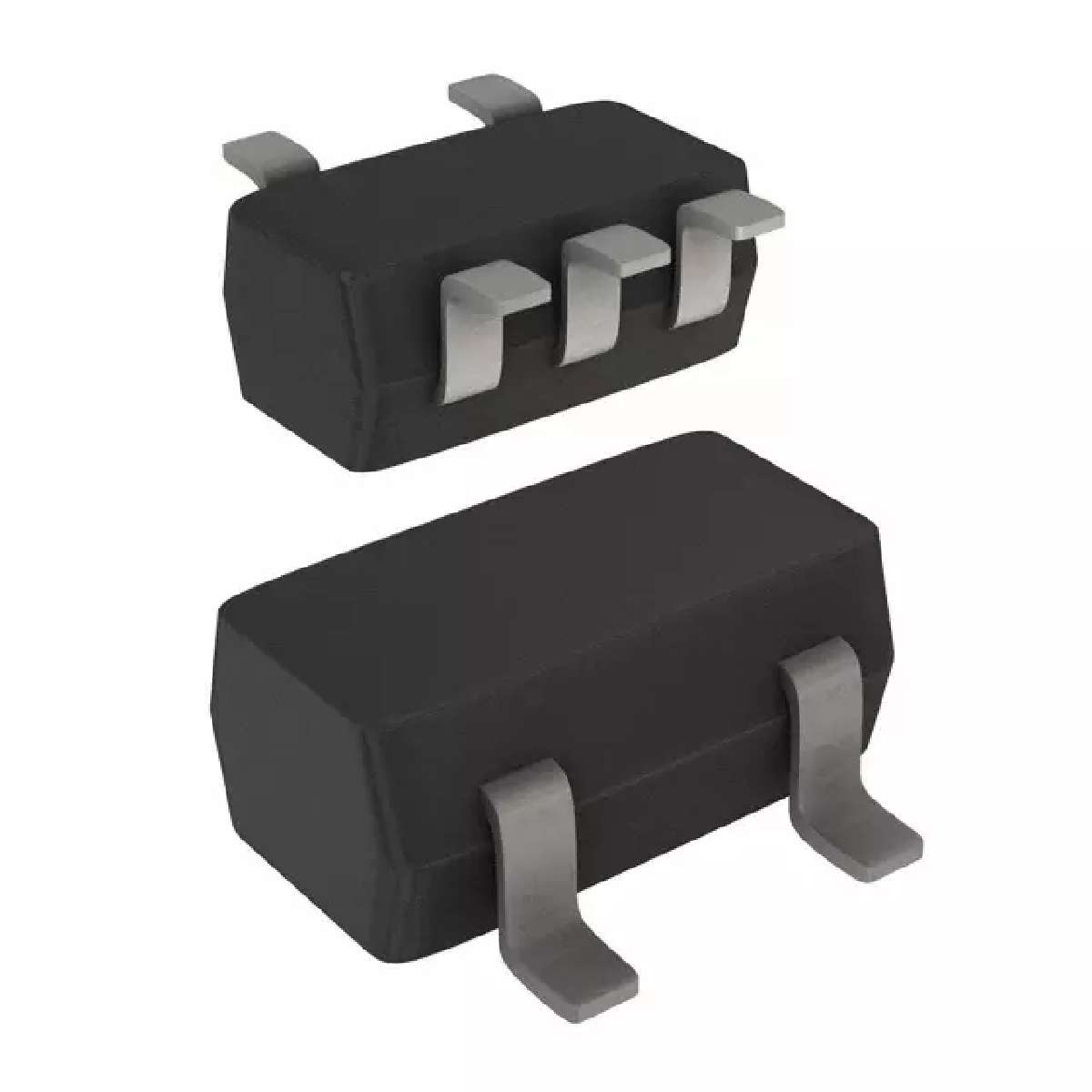

74LVC1G00GW,125图片11
74LVC1G00GW,125概述

NXP  74LVC1G00GW,125.  芯片, 与非门, 单路, 2输入, TSSOP-5, 整卷

The 74LVC1G00GW is a single 2-input NAND Gate with input can be driven from either 3.3V or 5V devices. This feature allows the use of these devices in a mixed 3.3V and 5V environment. Schmitt-trigger action at all inputs makes the circuit tolerant for slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

.
High noise immunity
.
Complies with JEDEC standard - JESD8-7, JESD8-5 and JESD8-B/JESD36
.
±24mA Output drive VCC = 3V
.
CMOS low power consumption
.
Latch-up performance exceeds 250mA
.
Direct interface with TTL levels
.
Inputs accept voltages up to 5V
.
ESD protection - HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V
74LVC1G00GW,125中文资料参数规格
技术参数

频率 59.0 MHz

电源电压DC 1.65V min

输出接口数 1

输出电流 32 mA

电路数 1

针脚数 5

逻辑门个数 2

输入数 2

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 5

封装 SC-70-5

外形尺寸

高度 1 mm

封装 SC-70-5

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买74LVC1G00GW,125
型号: 74LVC1G00GW,125
制造商: NXP 恩智浦
描述:NXP  74LVC1G00GW,125.  芯片, 与非门, 单路, 2输入, TSSOP-5, 整卷
