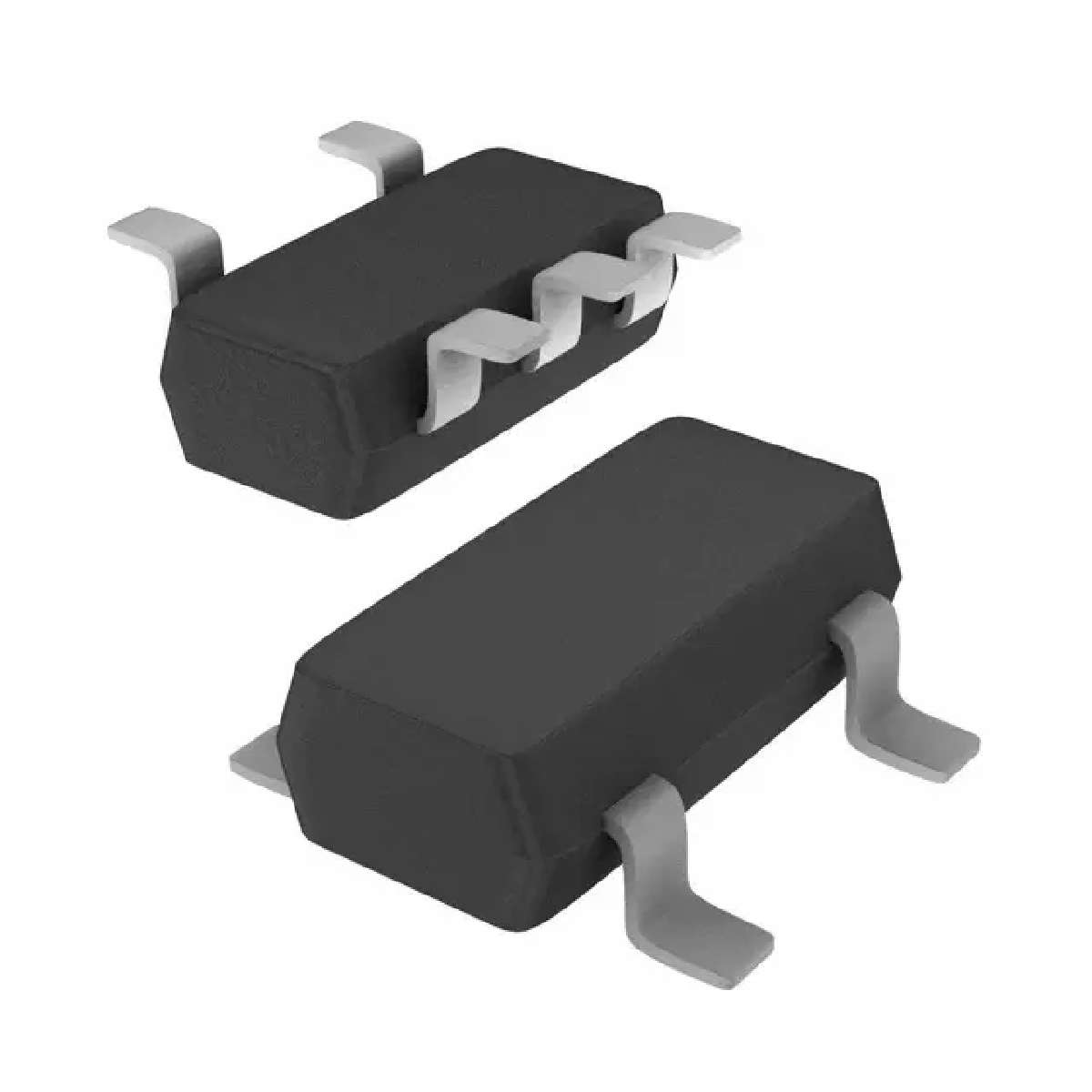

74LVC1G17 系列 5.5 V 表面贴装 单通道 施密特触发器 缓冲器 - SC74A
The is a single Schmitt trigger Buffer capable of transforming slowly changing input signals into sharply defined outputs. The input can be driven from either 3.3/5V devices. This feature allows the use of this device in a mixed 3.3 and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
- .
- High noise immunity
- .
- CMOS low power consumption
- .
- Direct interface with TTL levels
- .
- Unlimited rise and fall times
- .
- Complies with JEDEC standard
- .
- Latch-up performance exceeds 250mA
- .
- Inputs accept voltages up to 5V
电源电压DC 1.65V min
输出接口数 1
通道数 1
针脚数 5
耗散功率 250 mW
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5
封装 SOT-753-5
宽度 1.7 mm
高度 1 mm
封装 SOT-753-5
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal Processing, Automation & Process Control, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
