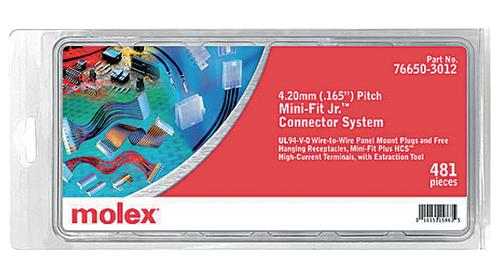

Molex MINI-FIT 系列 连接器套件 76650-3012
Mini-Fit Plus HCS Connectors Kit Wire to Panel
The Mini-Fit Plus HCS is designed for high current applications up to 13A dependant upon wire size and number of HCS contacts.

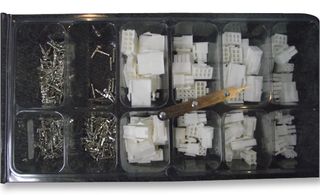

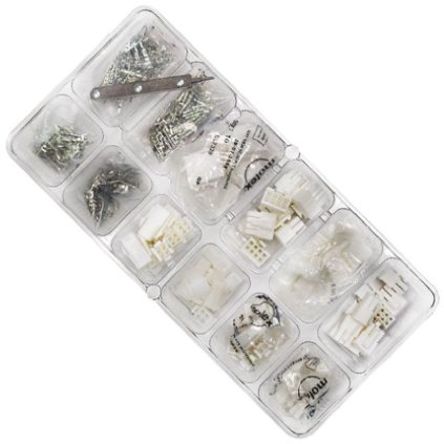

This Molex Mini-Fit® Plus HCS Wire to Panel Kit contains: Panel Mount Plugs, Cable Mount Receptacles, Male and Female HCS Crimp Terminals and an Extraction Tool.
Mini-Fit Plus HCS Connectors Kit Wire to Panel Contents
---
**Molex Part Number** | **Description** | **Quantity in Kit**
39-01-2025 | Mini-Fit Jr.™ receptacle, dual row, UL94-V-0, 02ckts | 10
39-01-2045 | Mini-Fit Jr.™ receptacle, dual row, UL94-V-0, 04ckts | 10
39-01-2065 | Mini-Fit Jr.™ receptacle, dual row, UL94-V-0, 06ckts | 10
39-01-2085 | Mini-Fit Jr.™ receptacle, dual row, UL94-V-0, 08ckts | 10
39-01-2026 | Mini-Fit Jr.™ plug, dual row, panel mount, UL94-V-0, 02ckts | 10
39-01-2046 | Mini-Fit Jr.™ plug, dual row, panel mount, UL94-V-0, 04ckts | 10
39-01-2066 | Mini-Fit Jr.™ plug, dual row, panel mount, UL94-V-0, 06ckts | 10
39-01-2086 | Mini-Fit Jr.™ plug, dual row, panel mount, UL94-V-0, 08ckts | 10
45750-1112 | Mini-Fit Plus HCS™ female terminal, 18-20AWG, tin plated, loose piece | 100
45750-3112 | Mini-Fit Plus HCS™ female terminal, 16AWG, tin plated, loose piece | 100
46012-3142 | Mini-Fit Plus HCS™ male terminal, 16AWG, tin plated, loose piece | 100
46012-1142 | Mini-Fit Plus HCS™ male terminal, 18-20AWG, tin plated, loose piece | 100
11-03-0044 | Extraction tool | 1
