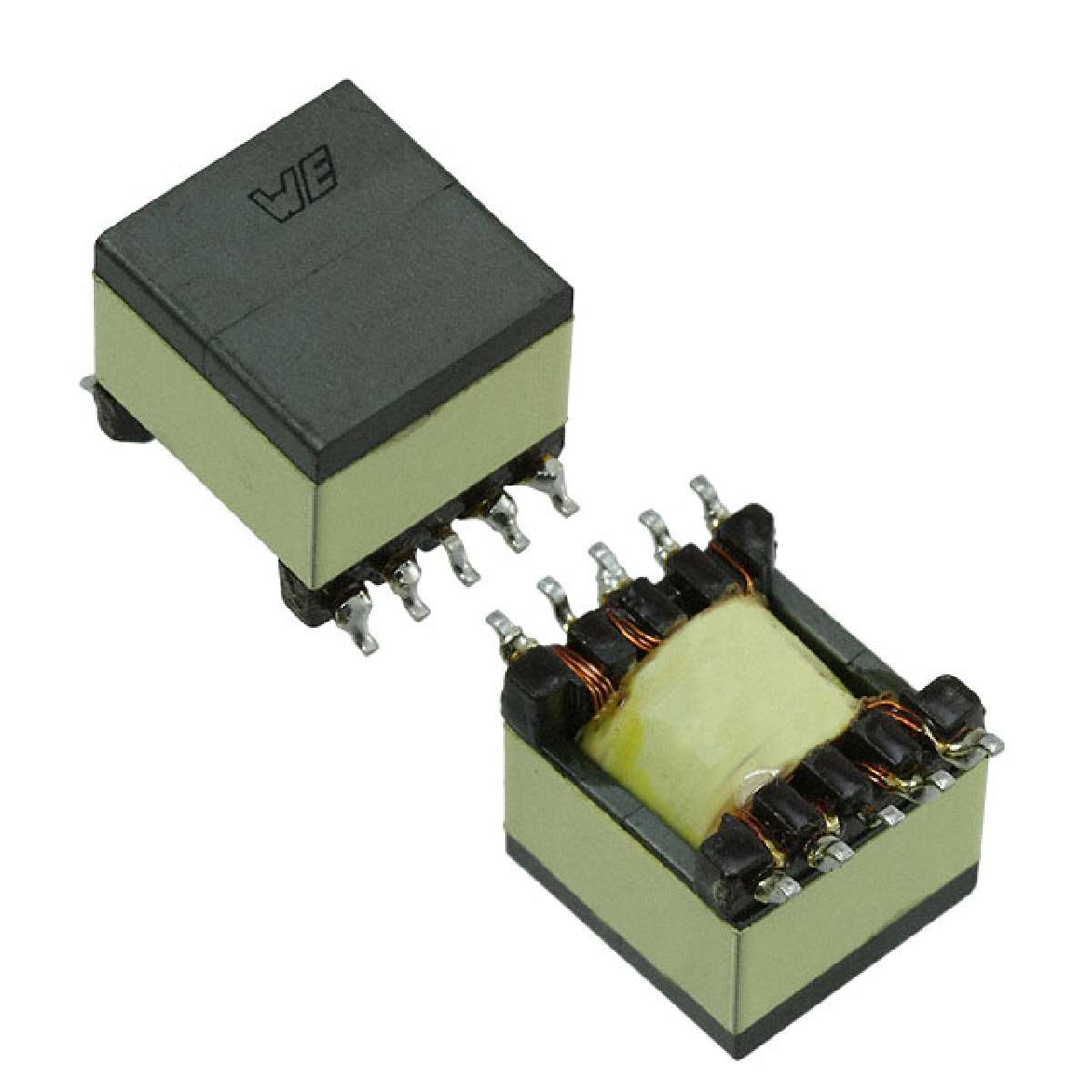

Wurth Flyback TransformersDesigned specifically for DC-DC convertors and offline PWM switching regulators The transformer is much smaller than a normal mains transformer for the same power rating due to the high operating frequency ### 600 Ohm 线路隔离,脉冲匹配和高频变压器
Wurth 回扫
专门设计用于直流-直流转换器和离线 PWM 开关调节器
对于相同功率等级,该变压器因其高工作频率而比正常的电源变压器更小。
得捷:
TRANS FLYBACK LT3748 LT3575 9UH
欧时:
### Wurth Flyback TransformersDesigned specifically for DC-DC convertors and offline PWM switching regulators The transformer is much smaller than a normal mains transformer for the same power rating due to the high operating frequency ### 600 Ohm 线路隔离,脉冲匹配和高频变压器
贸泽:
Audio Transformers / Signal Transformers WE-FB Flyback XFMR EP13 9uH 15V 1A
Chip1Stop:
Switching Transformer 1.5:1/3:1 0.034Ohm/0.077Ohm Prim. DCR 0.021Ohm Sec. DCR 10Term. Gull Wing SMD
频率 100 kHz
额定电流 8 A
输出电压 15.0 V
电感 9 µH
隔离电压 1500 Vrms
电阻DC) 0.034 Ω
工作温度Max 125 ℃
工作温度Min 40 ℃
电阻DC Max 0.077 Ω
安装方式 Surface Mount
长度 17.75 mm
宽度 13.46 mm
高度 12.7 mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 回扫转换器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
