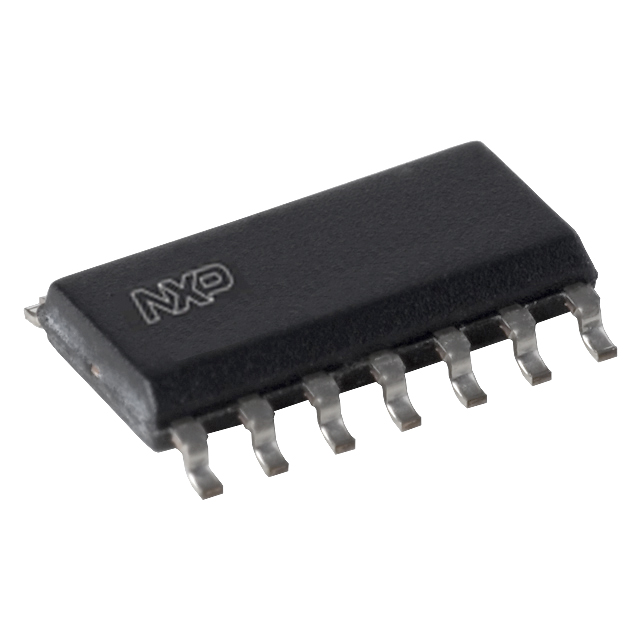

74ABT125 系列 5.5 V 高性能 BiCMOS 3 态 四通道 缓冲器 - SOIC-14
The is a Quad Buffer that is ideal for driving bus lines. The device features four output enable inputs 1OE, 2OE, 3OE, 4OE each controlling one of the 3-state outputs. The 74ABT125 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.
- .
- Quad bus interface
- .
- Live insertion and extraction permitted
- .
- Power-up 3-state
- .
- Inputs are disabled during 3-state mode
- .
- Latch-up protection exceeds 500mA per JESD78 class II level A
- .
- Output capability - HIGH -32mA and LOW 64mA
电源电压DC 4.50V min
输出接口数 4
通道数 4
针脚数 14
极性 N-Channel
逻辑门个数 4
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14
封装 SOT-108-14
宽度 4 mm
高度 1.45 mm
封装 SOT-108-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Test & Measurement, Computers & Computer Peripherals, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
